model：80JASM507230K-17BCH-SC

name：High voltage servo motor

◼ The maximum overload capacity of the motor is 3 times
◼ Stable low speed, low cogging torque
◼ High precision, using 17-bit encoder
◼ Motor high performance, high reliability, high efficiency
◼ Rated speed 3000r/min, maximum speed 5000r/min

online purchase →

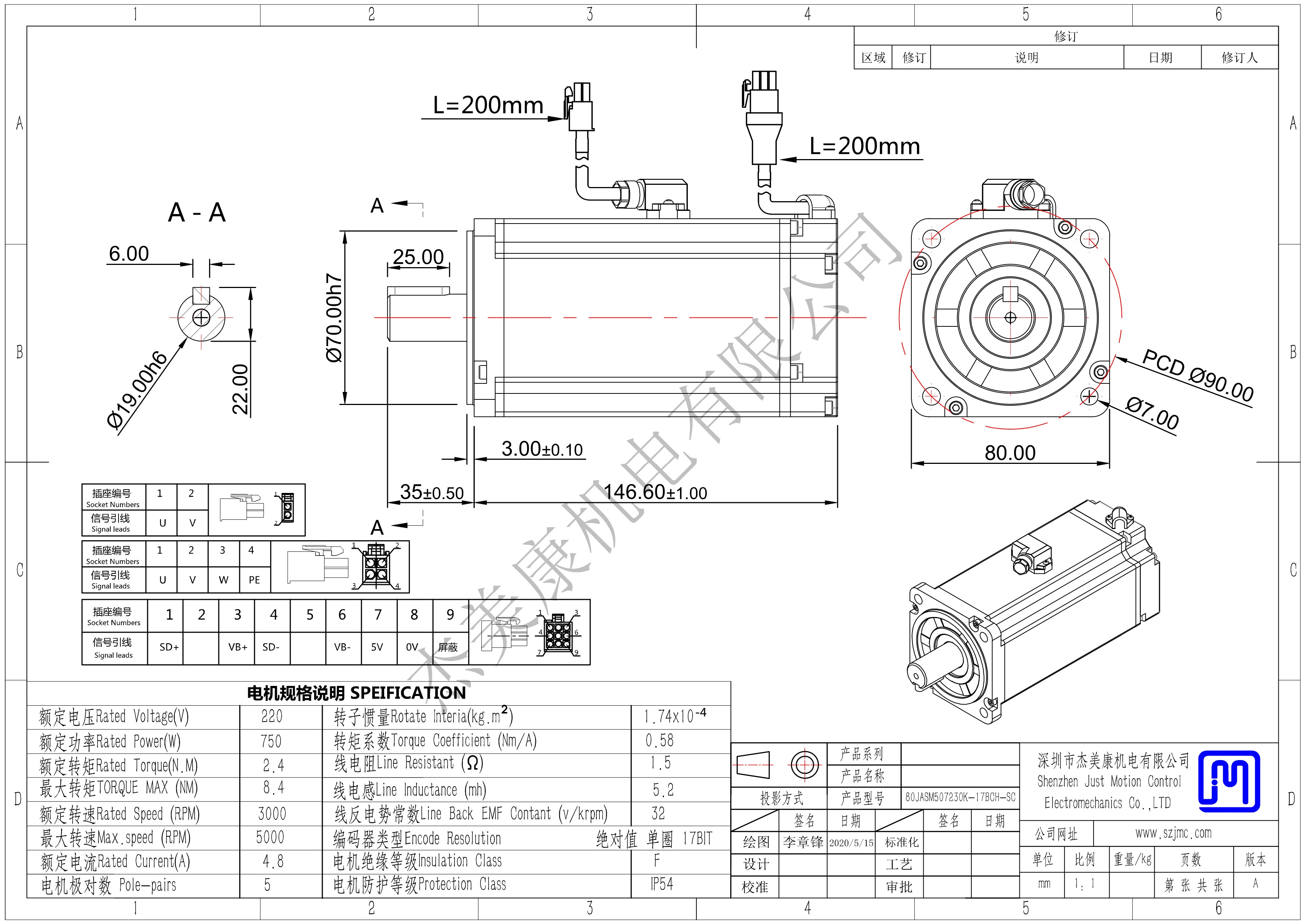

Specification Dimension Supporting facilities correlation download

Attribues	Unit	Value
Base size	mm	80
Length of motor	mm	146.6
Diameter of shaft	mm	19
Length of out shaft	mm	35
Rated voltage	V	220
Rated power	W	750
Rated torque	N.m	2.4
Max torque	N.m	8.4
Rated speed	rpm	3000
Max speed	rpm	5000
Rated current	A	4.8
Rotor inertia	kg.m²	1.74
Polars		5
Torque coefficient	N.m/A	0.58
Line risstance	Ω	1.5
Line inductance	Mh	5.2
EMF Constant	V rms/K rpm	32
Tpye of encoder		17bit
Insolution class		F
Protection class		IP54
Certified		RoHS
