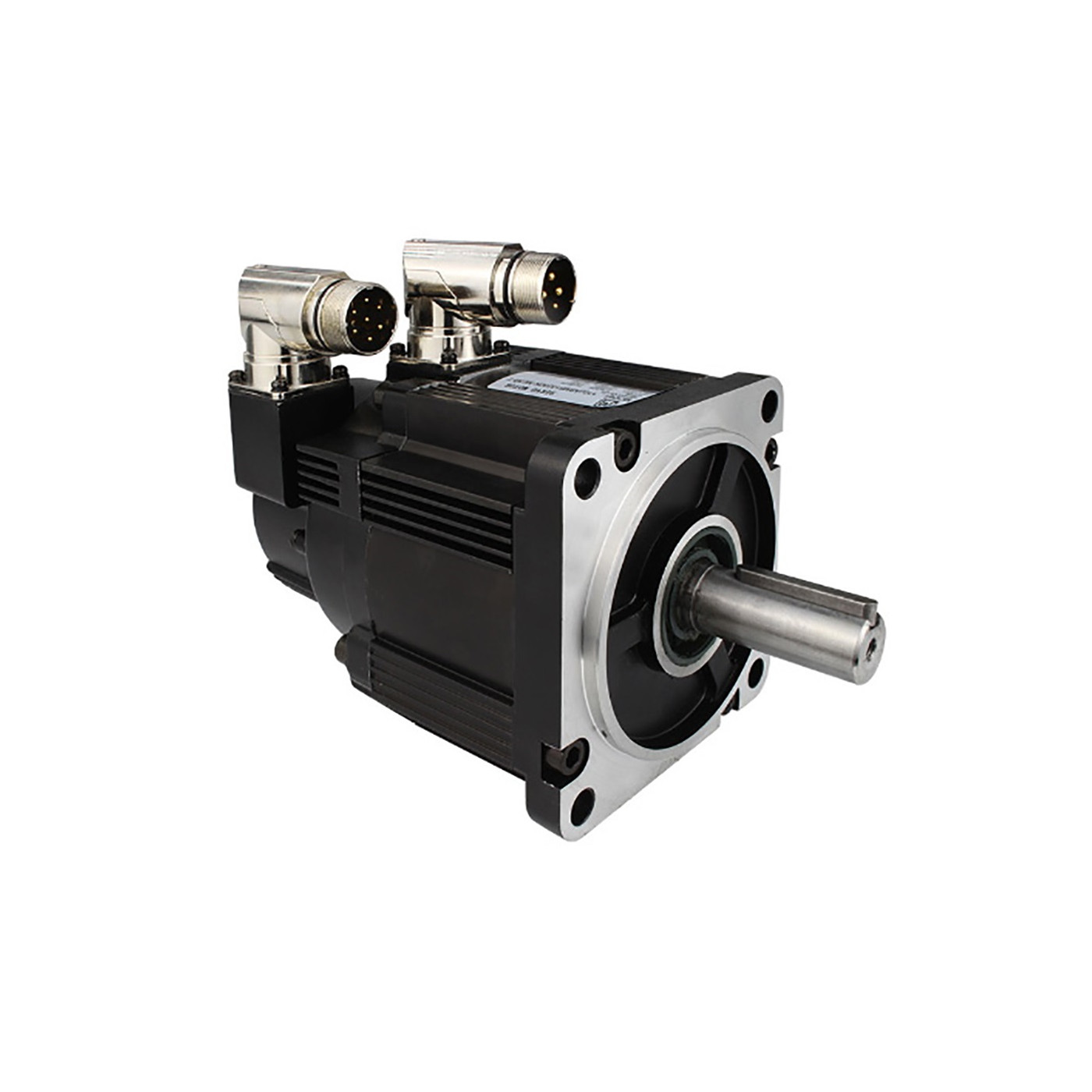

M23B Series
Rated：0.1-3KWOptional。
Short time300％Overload。
Low noise,Low heat,High presicion,High speed。
Flange size(mm)：40、60、80、110、130。
Motor Without Brake
| 产品型号 | Length of motor （mm） |
Input voltage （V） |
Rated current （A） |
Rated power （W） |
Rated speed （rpm） |
Rated torque （N.m） |
Rotor inertia (kg.m²) |
Encode type |
| 40JASM501230K-M23B-T | 98.6 | 220 | 0.8 | 100 | 3000 | 0.32 | 0.035 | M23B |
| 60JASM502230K-M23B-T | 115 | 220 | 1.1 | 200 | 3000 | 0.64 | 0.407 | M23B |
| 60JASM504230K-M23B-T | 142.6 | 220 | 2.8 | 400 | 3000 | 1.27 | 0.55 | M23B |
| 80JASM507230K-M23B-T | 144.5 | 220 | 4.2 | 750 | 3000 | 6.0 | 0.924 | M23B |
| 80JASM510230K-M23B-T | 162.5 | 220 | 4.5 | 1000 | 3000 | 3.18 | 1.207 | M23B |
| 110JASM513230K-M23B-T | 153 | 220 | 6.5 | 1300 | 3000 | 4.2 | 7.9 | M23B |
| 110JASM516220K-M23B-T | 184 | 220 | 8.0 | 1600 | 3000 | 7.5 | 12.4 | M23B |
| 130JASM508215K-M23B-T | 145 | 220 | 6.5 | 850 | 1500 | 5.4 | 13.9 | M23B |
| 130JASM515215K-M23B-T | 173.4 | 220 | 10 | 1500 | 1500 | 9.6 | 26.4 | M23B |
| 130JASM515220K-M23B-T | 159 | 220 | 9.0 | 1500 | 2000 | 7.5 | 1.875 | M23B |
| 130JASM515230K-M23B-T | 175 | 220 | 6.4 | 1500 | 3000 | 5.0 | 10.6 | M23B |
| 130JASM520230K-M23B-T | 154 | 220 | 11.5 | 2000 | 3000 | 6.4 | 16.0 | M23B |
| 130JASM523215K-M23B-T | 224 | 220 | 11.0 | 2300 | 1500 | 14.6 | 42.4 | M23B |
