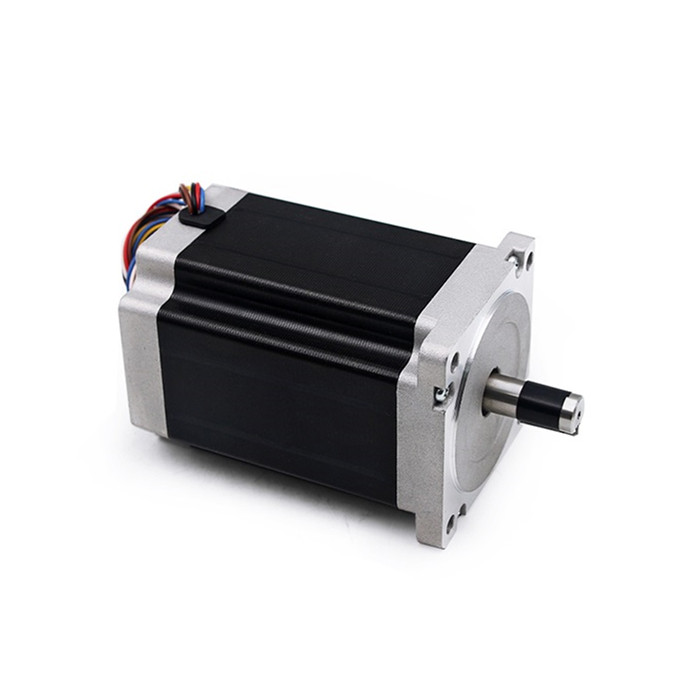

-------STEPPER MOTOR--------

A stepper motor is a mechanical device that directly converts electrical pulses into angular positions. The angle depends on the number of pulses. Together with other matching stepper motor drive devices, it forms a simple-to-control, low-cost open-loop system.

Product model	Phase	Frame Size (mm)	Frame Size (nema)	Torque (Nm)	Currency (Arms)	Length (mm)	Shaft Dia(mm)	Weight (kg)	Brake	Match Driver
20J1828-406-01	2	20	8	0.018	0.6	28	4	0.1	No	2DM415
20J1838-404-01	2	20	8	0.027	0.4	38	4	0.1	No	2DM415
28J1830-407-01	2	28	11	0.06	0.7	30	5	0.2	No	2DM415
28J1851-407-01	2	28	11	0.1	0.67	50	5	0.2	No	2DM415
35J1834-407-01	2	35	14	0.11	0.8	33	5	0.2	No	2DM415
35J1843-412-01	2	35	14	0.28	1.2	43	5	0.2	No	2DM415
35J1851-412-01	2	35	14	0.35	1.2	51	5	0.2	No	2DM415
39J1834-403-01	2	39	15	0.22	0.3	34	5	0.25	No	2DM415
39J1844-405-01	2	39	15	0.32	0.5	44	5	0.25	No	2DM415
42J1825-404-01	2	42	17	0.35	0.4	25	5	0.3	No	2DM420
42J1834-408-01	2	42	17	0.38	0.8	34	5	0.3	No	2DM420
42J1840-408-01	2	42	17	0.4	0.8	40	5	0.35	No	2DM420
42J1848-417-01	2	42	17	0.48	1.7	48	5	0.3	No	2DM420
42J1860-417-01	2	42	17	0.7	1.7	60	5	0.3	No	2DM420
57J1841-420-01	2	57	23	0.75	2.0	41	8	0.5	No	2DM542
57J1856-440-01	2	57	23	1.2	4	56	8	0.7	No	2DM542
57J1880-450-01	2	57	23	2.0	5	80	8	80	No	2DM542
57J18100-440-01	2	57	23	2.8	4.0	100	8	0.8	No	2DM542
57J18112-435-01	2	57	23	3.0	3.5	112	8	0.8	No	2DM542
60J1865-450-01	2	60	24	2.0	5.0	65	8	1.4	No	2DM556
60J1887-440-01	2	60	24	3.0	4.0	87	8	1.5	No	2DM556
60J18100-440-01	2	60	24	3.3	4.0	100	8	1.6	No	2DM556
60J18112-450-01	2	60	24	4.0	5.0	112	8	1.8	No	2DM556
86J1865-450-01	2	86	34	3.5	5.0	65	14	2.0	No	2DM860
86J1880-460-01	2	86	34	4.5	6.0	80	14	2.2	No	2DM860
86J1898-460-01	2	86	34	7.5	6.0	98	14	2.5	No	2DM860
86J18118-460-01	2	86	34	8.5	6.0	118	14	2.5	No	2DM860
86J18128-460-01	2	86	34	9.8	6.0	128	14	3.8	No	2DM860
86J18156-460-01	2	86	34	12	6	156	14	3.7	No	2DM860
110J18100-460-01	2	110	42	12	6.0	100	19	4.9	No	2DM2260
110J18150-460-01	2	110	42	20	6.0	138	19	8.1	No	2DM2260
110J18165-460-01	2	110	42	24	6.0	165	19	9.5	No	2DM2260
110J18197-460-01	2	110	42	28	6.0	197	19	10	No	2DM2260
57J1276-658(F)	3	57	23	1.5	5.8	76	8	0.8	No	3DM783
86J1270-650-12(K)	3	86	34	2.2	5.0	70	12	2	No	3DM783
86J12103-345-12(K)	3	86	34	4.5	4.5	98	12	3	No	3DM783
86J12126-340-HJ	3	86	34	6.8	4.0	126	14	4	No	3DM783
110J12161-360	3	110	42	12	6.0	160	19	3.5	No	3DM783
110J12185-360	3	110	42	16	6	188	19	6	No	3DM2080
110J12220-360	3	110	42	20	6.0	222	19	8	No	3DM2080
130J12188-368	3	130	51	24	6.8	191	19	9.5	No	3DM2080
130J12220-368	3	130	51	28	6.8	236	19	11	No	3DM2080
130J12252-368	3	130	51	35	6.8	256	19	13.5	No	3DM2080
130J12280-368	3	130	51	50	6.8	273	19	14	No	3DM2080
