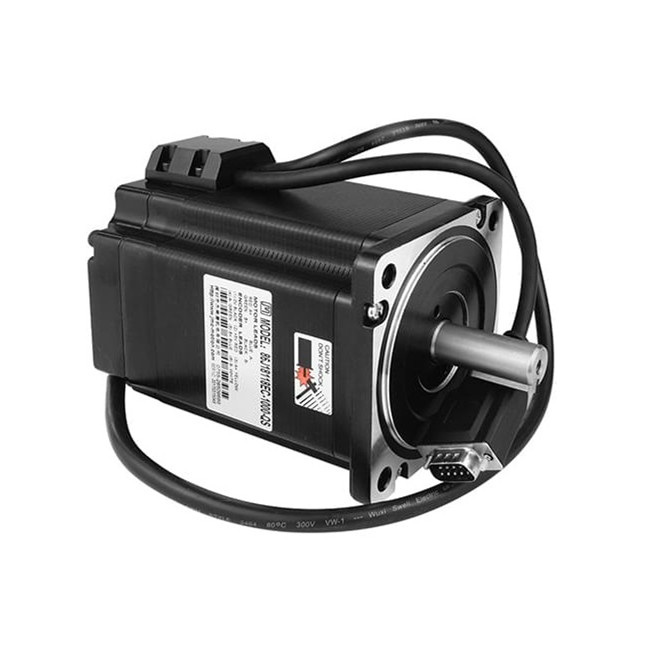

STEPPER MOTOR WITH BRAKE
The closed-loop stepper drive products use the latest motor-specific DSP chip and closed-loop control technology to completely overcome the problem of open-loop stepper motor step loss. They can not only significantly improve high-speed performance and acceleration and deceleration performance, but also effectively reduce motor heating and vibration.
| Product model | Phase | Frame Size (mm) |
Frame Size (nema) |
Torque (Nm) |
Currency (A) |
Length (mm) |
Shaft Dia(mm) |
Weight (kg) |
Brake | Encoder (Line) |
Match Driver |
| 42J1848EC-1000-LS-SCG | 2 | 42 | 17 | 0.48 | 1.2 | 99.5 | 5 | 0.5 | Yes | 1000 | 2HSS57-SC |
| 42J1860EC-1000-LS-SCG | 2 | 42 | 17 | 0.68 | 2.0 | 111.5 | 5 | 0.3 | Yes | 1000 | 2HSS57-SC |
| 57J1854EC-1000-LS-SCG | 2 | 57 | 23 | 1.2 | 4.0 | 113 | 8 | 0.5 | Yes | 1000 | 2HSS57-SC |
| 57J1880EC-1000-LS-SCG | 2 | 57 | 23 | 2.0 | 5.0 | 133.5 | 8 | 1.2 | Yes | 1000 | 2HSS57-SC |
| 60J1887EC-1000-LS-SCG | 2 | 60 | 24 | 3.0 | 5.0 | 142.5 | 8 | 1.5 | Yes | 1000 | 2HSS57-SC |
| 60J18100EC-1000-LS-SCG | 2 | 60 | 24 | 3.5 | 5.0 | 157 | 8 | 1.5 | Yes | 1000 | 2HSS57-SC |
| 86J1880EC-1000-LS-SCG | 2 | 86 | 34 | 4.5 | 6.0 | 142 | 14 | 4.2 | Yes | 1000 | 2HSS2206-SC |
| 86J18156EC-1000-LS-SCG | 2 | 86 | 34 | 12.2 | 6.0 | 216.5 | 14 | 4.2 | Yes | 1000 | 2HSS2206-SC |
| 86J18118EC-1000-LS-SCG | 2 | 86 | 34 | 8.5 | 6.0 | 175 | 14 | 42 | Yes | 1000 | 2HSS2206-SC |
| 86J12126EC-1000-60-SCG | 3 | 86 | 34 | 6.78 | 4.0 | 191.4 | 14 | 4.2 | Yes | 1000 | 3HSS2206-SC |
| 86J12156EC-1000-60-SCG | 3 | 86 | 34 | 7.8 | 3.0 | 217 | 14 | 4.2 | Yes | 1000 | 3HSS2206-SC |
| 110J12135EC-1000-SC | 3 | 110 | 42 | 12 | 4.5 | 223 | 19 | 8.1 | Yes | 1000 | 3HSS2208H-SC |
| 110J12160EC-1000-SC | 3 | 110 | 42 | 16 | 6.0 | 248 | 19 | 8.3 | Yes | 1000 | 3HSS2208H-SC |
| 110J12190EC-1000-SC | 3 | 110 | 42 | 19.8 | 20 | 282 | 19 | 8.5 | Yes | 1000 | 3HSS2208H-SC |
| 130J12225EC-2500-SC | 3 | 130 | 51 | 35 | 6.8 | 327 | 24 | 13.5 | Yes | 1000 | 3HSS2208H-SC |
| 130J12250EC-2500-SC | 3 | 130 | 51 | 50 | 6.8 | 342 | 24 | 14.5 | Yes | 1000 | 3HSS2208H-SC |
