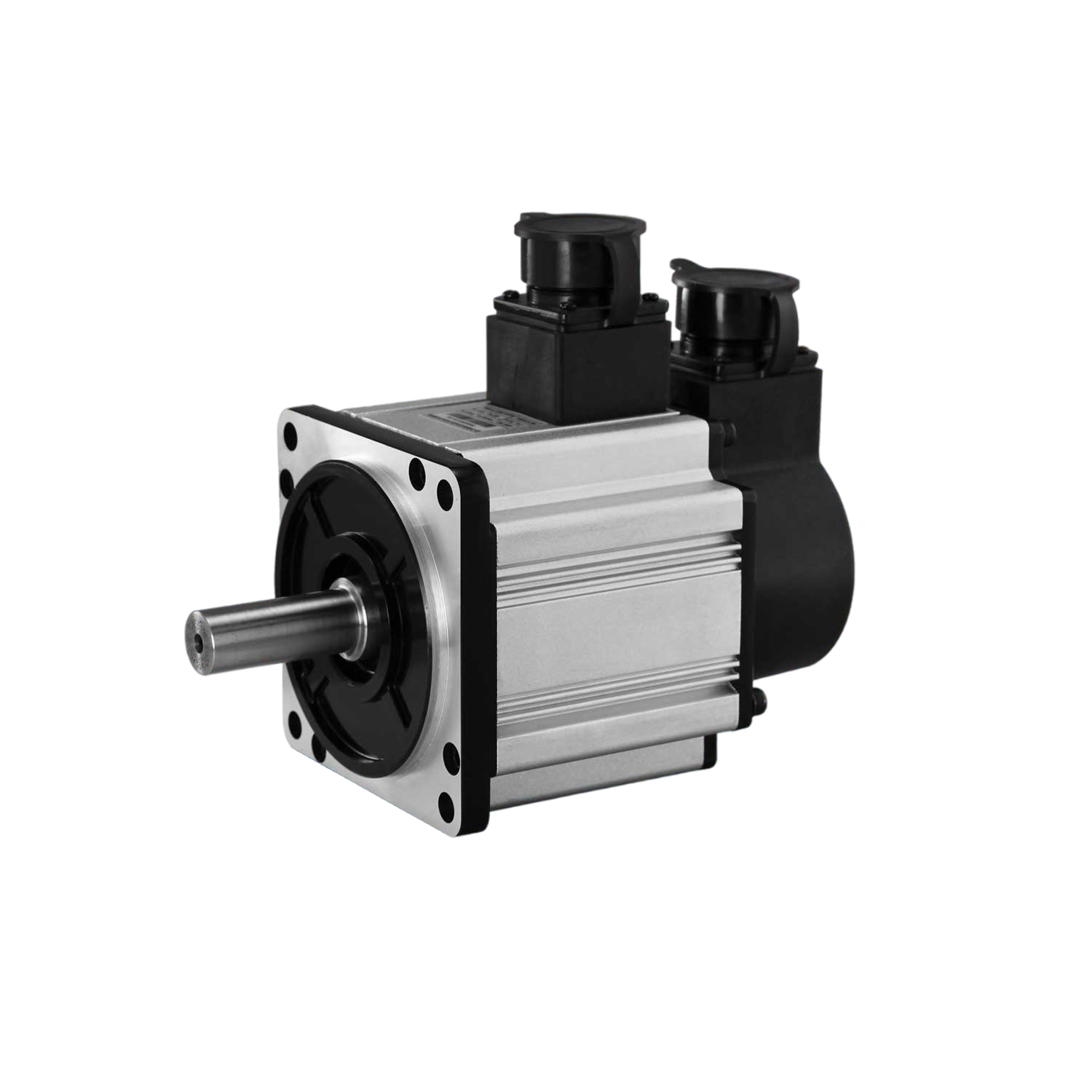

--------AC SERVO MOTOR--------

  • The rotor speed of this series of servo motors is controlled by the input signal and can respond quickly. In the automatic control system, it is used as an actuator and has the characteristics of small electrical and mechanical time constants, high linearity, and starting voltage. It can convert the received electrical signal into angular displacement or angular velocity output on the motor shaft, and can feed back the signal to the servo driver in real time for adjustment to achieve high-precision control.

AC Servo Motor : 17Bit Encoder

Product model Phase Frame Size
(mm)		 Power
(w)		 Voltage
(V)		 Torque
(N.m)		 Current
(A)		 Speed
(r/min)		 Length
(mm)		 Shaft
Dia(mm)		 Weight
(kg)		 Encoder
(Bit)		 Match
Driver
60JASM502230K-17BC 2 60 200 220 0.64 1.5 3000 81 14 1.4 17Bit JAND2002-20B
60JASM504230K-17BC 2 60 400 220 1.27 2.5 3000 91.76 14 1.2 17Bit JAND4002-20B
80JASM507230K-17BC 2 80 750 220 2.39 4.3 3000 101 19 2.2 17Bit JAND7502-20B
80JASM510230K-17BC 2 80 1000 220 3.18 5.0 3000 115 19 2.7 17Bit JAND15002-20B
40JASM501230K-17BC 2 40 100 220 0.32 1.0 3000 74.8 8 0.5 17Bit JAND2002-20B
60JASM506230K-17BC 2 60 600 220 1.91 4.0 3000 115 14 1.8 17Bit JAND4002-20B
110JASM12230K-17BC 2 110 1200 220 4.0 5.0 3000 190 19 6 17Bit JAND15002-20B
110JASM15230K-17BC 2 110 1500 220 5.0 6.0 3000 205 19 6.5 17Bit JAND15002-20B
130JASM515215K-17BC 2 130 1500 220 9.55 6.2 1500 170 22 8.3 17Bit JAND15002-20B
130JASM520230K-17BC 2 130 2000 220 6.4 8.5 3000 152.5 22 7.1 17Bit JAND20002-20B
130JASM530220K-17BC 2 130 3000 220 14.3 14.3 2000 200 22 8.3 17Bit JAND20002-20B
130JASM530220K-17BC 2 130 3000 220 14.3 16.5 2000 152.5 22 10.7 17Bit JAND30002-20B

AC Servo Motor : 23Bit Encoder

Product model Phase Frame Size
(mm)		 Power
(w)		 Voltage
(V)		 Torque
(N.m)		 Current
(A)		 Speed
(r/min)		 Length
(mm)		 Shaft
Dia(mm)		 Weight
(kg)		 Encoder
(Bit)		 Match
Driver
60JASM502230K-M23B 2 60 200 220 0.64 1.1 3000 155 14 0.8 23Bit JAND2002-20B
60JASM504230K-M23B 2 60 400 220 1.27 2.8 3000 184 14 1.2 23Bit JAND4002-20B
40JASM501230K-M23B 2 40 100 220 0.32 1.0 3000 74.8 8 0.32 23Bit JAND2002-20B
80JASM507230K-M23B 2 80 750 220 2.39 4.2 3000 144.5 19 2.2 23Bit JAND7502-20B
80JASM510230K-M23B 2 80 1000 220 3.18 5.15 3000 162.5 19 2.7 23Bit JAND15002-20B
110JASM513230K-M23B 2 110 1300 220 4.2 6.5 3000 153 19 5.1 23Bit JAND15002-20B
110JASM516220K-M23B 2 110 1600 220 7.5 8.0 3000 184 19 5.8 23Bit JAND15002-20B
130JASM515215K-M23B 2 130 1500 220 9.6 10 1500 173.4 22 5.76 23Bit JAND15002-20B
130JASM515220K-M23B 2 130 1500 220 7.5 9.0 2000 159 22 7.1 23Bit JAND15002-20B
130JASM520230K-M23B 2 130 2000 220 6.4 8.5 3000 152.5 22 7.1 23Bit JAND20002-20B
130JASM530220K-M23B 2 130 2000 220 14.8 17 3000 224 22 10.7 23Bit JAND30002-20B
