model：PEZ090-L1

name：Planetary Reducer

Specification range: 60-180
Cost-effective, light and easy to install
The gear quenching hardness reaches 62 degrees, and the tooth surface is ground
Can be equipped with any brand of servo and stepper motor
The surface is treated with baking paint to ensure that the appearance does not change color and rust

online purchase →

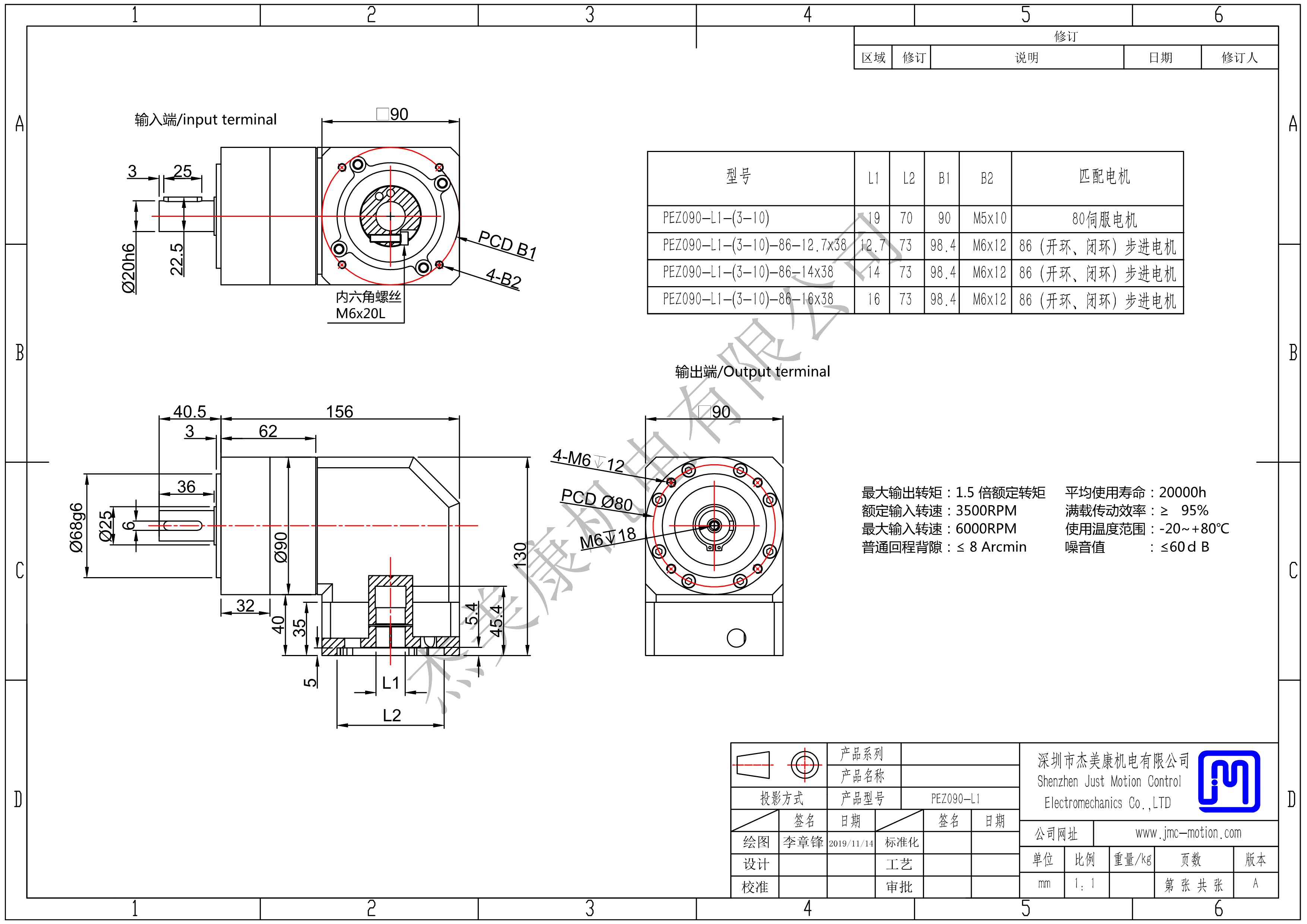

Specification 机械尺寸 Supporting facilities correlation download

Model	Ratio	Rated Torque（Nm）	Match
#80 φ19
PEZ090-L1-3	3	96	80#
PEZ090-L1-4	4	122	80#
PEZ090-L1-5	5	122	80#
PEZ090-L1-7	7	95	80#
PEZ090-L1-10	10	56	80#
86# φ12.7
PEZ090-L1-3-86-12.7x38	3	96	86#
PEZ090-L1-4-86-12.7x38	4	122	86#
PEZ090-L1-5-86-12.7x38	5	122	86#
PEZ090-L1-7-86-12.7x38	7	95	86#
PEZ090-L1-10-86-12.7x38	10	56	86#
86# φ14
PEZ090-L1-3-86-14x38	3	96	86#
PEZ090-L1-4-86-14x38	4	122	86#
PEZ090-L1-5-86-14x38	5	122	86#
PEZ090-L1-7-86-14x38	7	95	86#
PEZ090-L1-10-86-14x38	10	56	86#
86# φ16
PEZ090-L1-3-86-16x38	3	96	86#
PEZ090-L1-4-86-16x38	4	122	86#
PEZ090-L1-5-86-16x38	5	122	86#
PEZ090-L1-7-86-16x38	7	95	86#
PEZ090-L1-10-86-16x38	10	56	86#

Model

Brochure

manual

Communication manual

CEattestation

CE RoHS

2D drawing
3D Model

debugging
software

equipment
description

PEZ090-L1
