Product model：PEZ120-L1

Product name：Plantery Reducer

Specification range: 60-180
Cost-effective, light and easy to install
The gear quenching hardness reaches 62 degrees, and the tooth surface is ground
Can be equipped with any brand of servo and stepper motor
The surface is treated with baking paint to ensure that the appearance does not change color and rust

Online purchase →

Specification Dimension Accessory products Related products Download materials

Model	Ratio	Rated Torque（Nm）	Match Motor
130# φ22
PEZ120-L1-3	3	161	130#
PEZ120-L1-4	4	210	130#
PEZ120-L1-5	5	210	130#
PEZ120-L1-7	7	170	130#
PEZ120-L1-10	10	86	130#
110# φ19
PEZ120-L1-3-110	3	161	110#
PEZ120-L1-4-110	4	210	110#
PEZ120-L1-5-110	5	210	110#
PEZ120-L1-7-110	7	170	110#
PEZ120-L1-10-110	10	86	110#
110# φ19
PEZ120-L1-3-110-19x40	3	161	110#
PEZ120-L1-4-110-19x40	4	210	110#
PEZ120-L1-5-110-19x40	5	210	110#
PEZ120-L1-7-110-19x40	7	170	110#
PEZ120-L1-10-110-19x40	10	86	110#
110 φ19
PEZ120-L1-3-110-56-19x56	3	161	110#
PEZ120-L1-4-110-56-19x56	4	210	110#
PEZ120-L1-5-110-56-19x56	5	210	110#
PEZ120-L1-7-110-56-19x56	7	170	110#
PEZ120-L1-10-110-56-19x56	10	86	110#

Model

Catalog

Manual

Connect Protocol

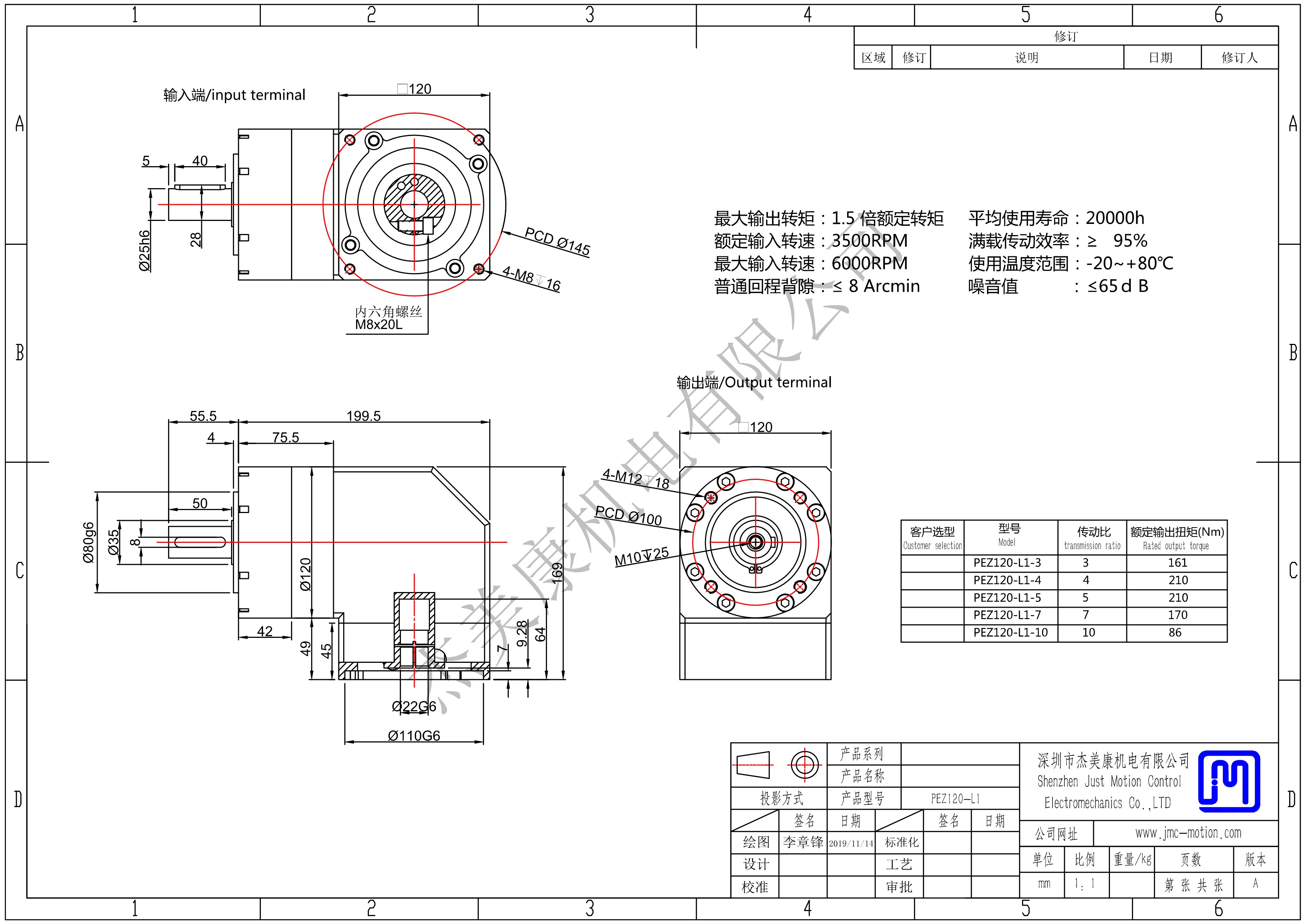

Drawing
