Product model：PEZ120-L2

Product name：Plantery Reducer

Specification range: 60-180
Cost-effective, light and easy to install
The gear quenching hardness reaches 62 degrees, and the tooth surface is ground
Can be equipped with any brand of servo and stepper motor
The surface is treated with baking paint to ensure that the appearance does not change color and rust

Online purchase →

Specification Dimension Accessory products Related products Download materials

Model	Ratio	Rated Torque（Nm）	Match
130# φ22
PEZ120-L2-9	9	161	130#
PEZ120-L2-12	12	161	130#
PEZ120-L2-15	15	161	130#
PEZ120-L2-16	16	210	130#
PEZ120-L2-20	20	210	130#
PEZ120-L2-25	25	210	130#
PEZ120-L2-28	28	210	130#
PEZ120-L2-30	30	161	130#
PEZ120-L2-35	35	210	130#
PEZ120-L2-40	40	210	130#
PEZ120-L2-50	50	210	130#
PEZ120-L2-70	70	170	130#
PEZ120-L2-100	100	86	130#
110# φ19
PEZ120-L2-9-110	9	161	110#
PEZ120-L2-12-110	12	161	110#
PEZ120-L2-15-110	15	161	110#
PEZ120-L2-16-110	16	210	110#
PEZ120-L2-20-110	20	210	110#
PEZ120-L2-25-110	25	210	110#
PEZ120-L2-28-110	28	210	110#
PEZ120-L2-30-110	30	161	110#
PEZ120-L2-35-110	35	210	110#
PEZ120-L2-40-110	40	210	110#
PEZ120-L2-50-110	50	210	110#
PEZ120-L2-70-110	70	170	110#
PEZ120-L2-100-110	100	86	110#
110 # φ19
PEZ120-L2-9-110-19x40	9	161	110#
PEZ120-L2-12-110-19x40	12	161	110#
PEZ120-L2-15-110-19x40	15	161	110#
PEZ120-L2-16-110-19x40	16	210	110#
PEZ120-L2-20-110-19x40	20	210	110#
PEZ120-L2-25-110-19x40	25	210	110#
PEZ120-L2-28-110-19x40	28	210	110#
PEZ120-L2-30-110-19x40	30	161	110#
PEZ120-L2-35-110-19x40	35	210	110#
PEZ120-L2-40-110-19x40	40	210	110#
PEZ120-L2-50-110-19x40	50	210	110#
PEZ120-L2-70-110-19x40	70	170	110#
PEZ120-L2-100-110-19x40	100	86	110#
110# φ19
PEZ120-L2-9-110-56-19x56	9	161	110#
PEZ120-L2-12-110-56-19x56	12	161	110#
PEZ120-L2-15-110-56-19x56	15	161	110#
PEZ120-L2-16-110-56-19x56	16	210	110#
PEZ120-L2-20-110-56-19x56	20	210	110#
PEZ120-L2-25-110-56-19x56	25	210	110#
PEZ120-L2-28-110-56-19x56	28	210	110#
PEZ120-L2-30-110-56-19x56	30	161	110#
PEZ120-L2-35-110-56-19x56	35	210	110#
PEZ120-L2-40-110-56-19x56	40	210	110#
PEZ120-L2-50-110-56-19x56	50	210	110#
PEZ120-L2-70-110-56-19x56	70	170	110#
PEZ120-L2-100-110-56-19x56	100	86	110#

Model

Catalog

Manual

Connect Protocol

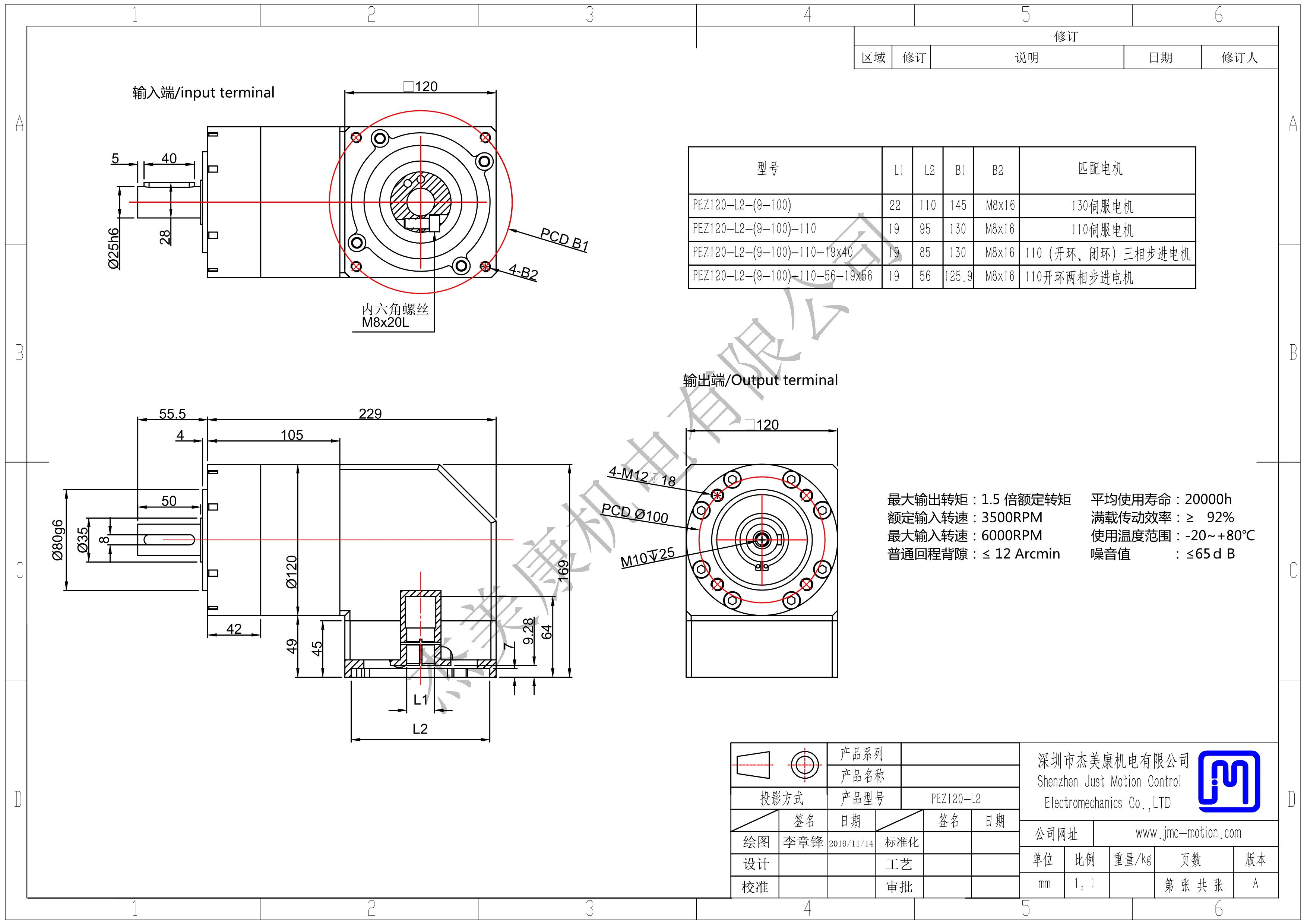

Drawing
