Product model：60JASM502230K-17BC-SC

Product name：High voltage servo motor

◼ The maximum overload capacity of the motor is 3 times
◼ Stable low speed, low cogging torque
◼ High precision, using 17-bit encoder
◼ Motor high performance, high reliability, high efficiency
◼ Rated speed 3000r/min, maximum speed 6000r/min

Online purchase →

Specification Dimension Accessory products Related products Download materials

Attributes	Unit	Value
Base size	mm	60
Length of motor	mm	103.8
Diameter of shaft	mm	14
Length of shaft	mm	30
Rated voltage	V	220
Rated power	W	200
Rated torque	N.m	0.64
Max torque	N.m	1.91
Rated speed	rpm	3000
Rated speed	rpm	6000
Rated current	A	1.3
Rotor inertia	kg.m²	0.29
Polar		5
Torque coefficient	N.m/A	0.49
Line risstance	Ω	10.2
Line inductance	Mh	16.4
EMF constant	V rms/K rpm	36
Tpye of encoder		17bit Single turn
Insolution class		F
Protection class		IP54
Certified		RoHS

Model

Catalog

Manual

Connect Protocol

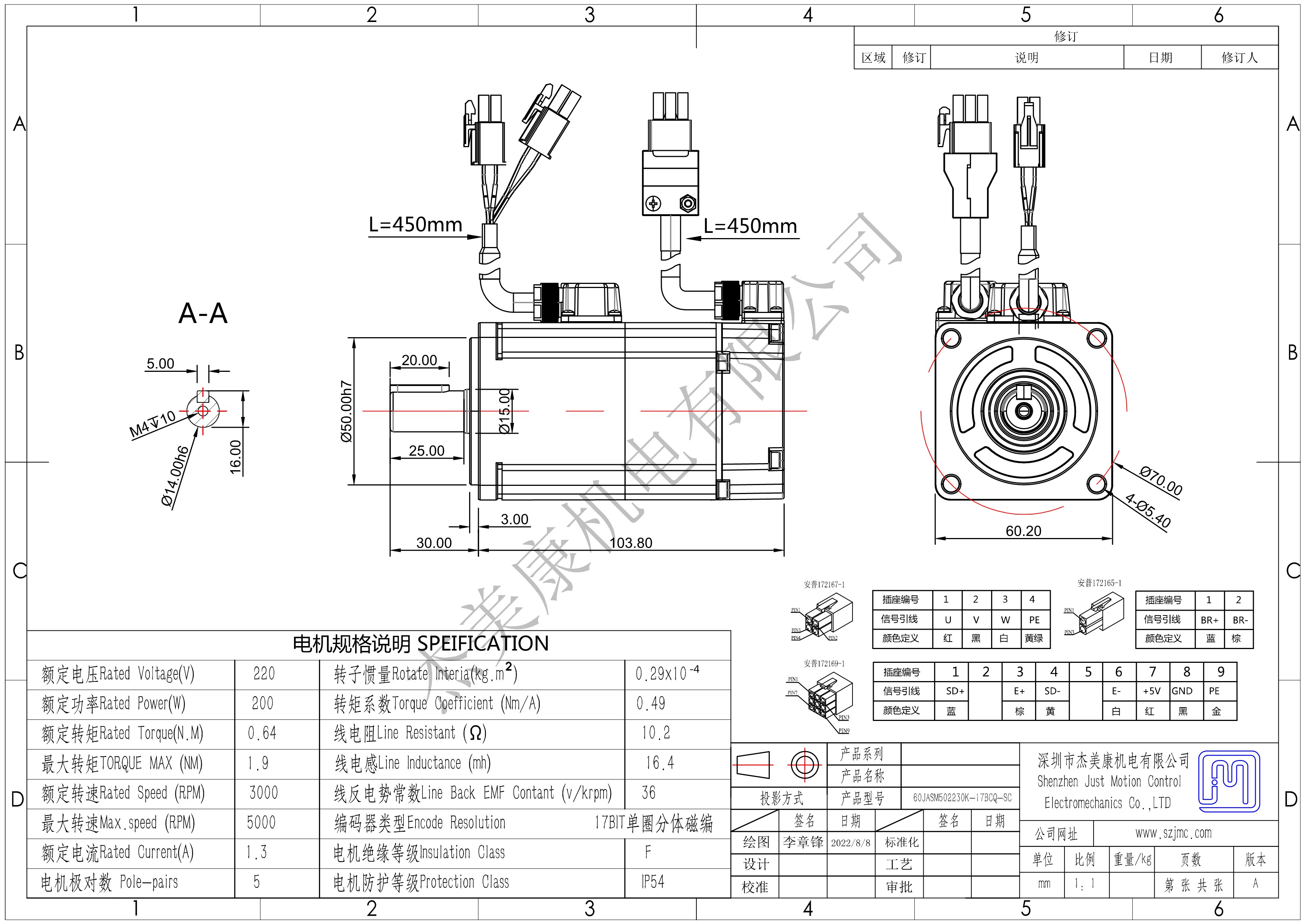

Drawing

2D 3D

Datasheet

Debug
Software

Certificate

60JASM502230K-17BC-SC
