model：60JASM504230K-17BCQ-SC

name：High voltage servo motor

◼ The maximum overload capacity of the motor is 3 times
◼ Stable low speed, low cogging torque
◼ High precision, using 17-bit encoder
◼ Motor high performance, high reliability, high efficiency
◼ Rated speed 3000r/min, maximum speed 6000r/min

online purchase →

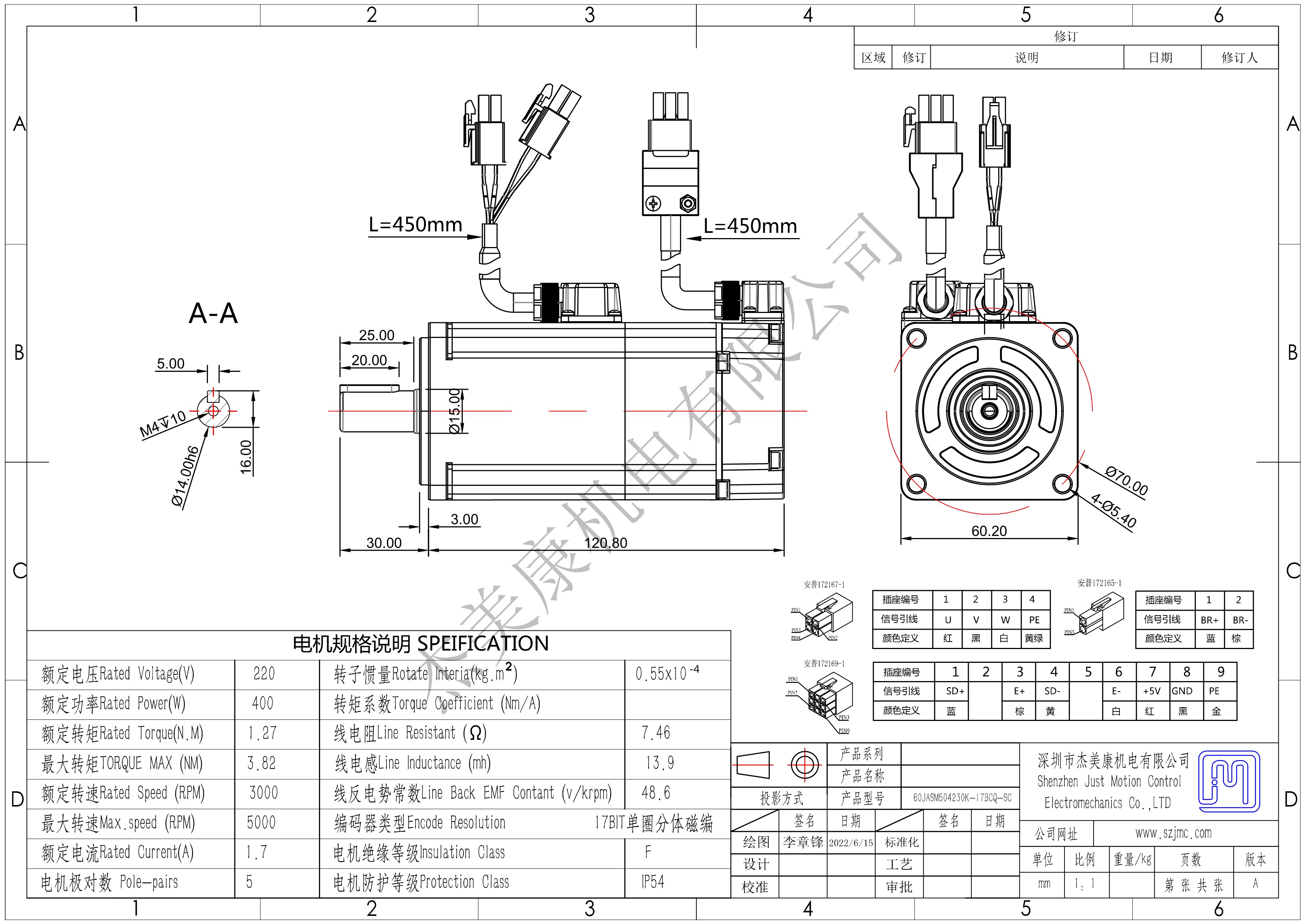

Specification Dimension Supporting facilities correlation download

Attributes	Unit	Value
Base size	mm	60
Length of motor	mm	120.8
Diameter of shaft	mm	14
Length of outshaft	mm	30
Rated voltage	V	220
Rated power	W	400
Rated torque	N.m	1.27
Max torque	N.m	3.82
Rated speed	rpm	3000
Max speed	rpm	5000
Rated current	A	1.7
Rotor inertia	kg.m²	0.55
Polars		5
Torque coefficient	N.m/A	0.75
Line resistance	Ω	7.46
Line inductance	Mh	13.9
EMF constant	V rms/K rpm	48.6
Type of encoder		17bit Single turn
Insolution class		F
Protection class		IP54
Certified		RoHS
