Product model：80JASM507230K-17BC-SC

Product name：High voltage servo motor

◼ The maximum overload capacity of the motor is 3 times
◼ Stable low speed, low cogging torque
◼ High precision, using 17-bit encoder
◼ Motor high performance, high reliability, high efficiency
◼ Rated speed 3000r/min, maximum speed 4000r/min

Online purchase →

Specification Dimension Accessory products Related products Download materials

Attributes	Unit	Value
Base size	mm	80
Length of motor	mm	136
Diameter of shaft	mm	19
Length of out shaft	mm	35
Rated voltage	V	220
Rated power	W	750
Rated torque	N.m	2.39
Max torque	N.m	7.17
Rated speed	rpm	3000
Max speed	rpm	4000
Rated current	A	3.5
Rotoa inertia	kg.m²	1.54
Polar		5
Torque coefficient	N.m/A	0.68
Line resistance	Ω	1.83
Line inductance	Mh	6.8
EMF constant	V rms/K rpm	43.3
Type of encoder		17bit
Insolution class		F
Protection class		IP54
Certified		RoHS

Model

Catalog

Manual

Connect Protocol

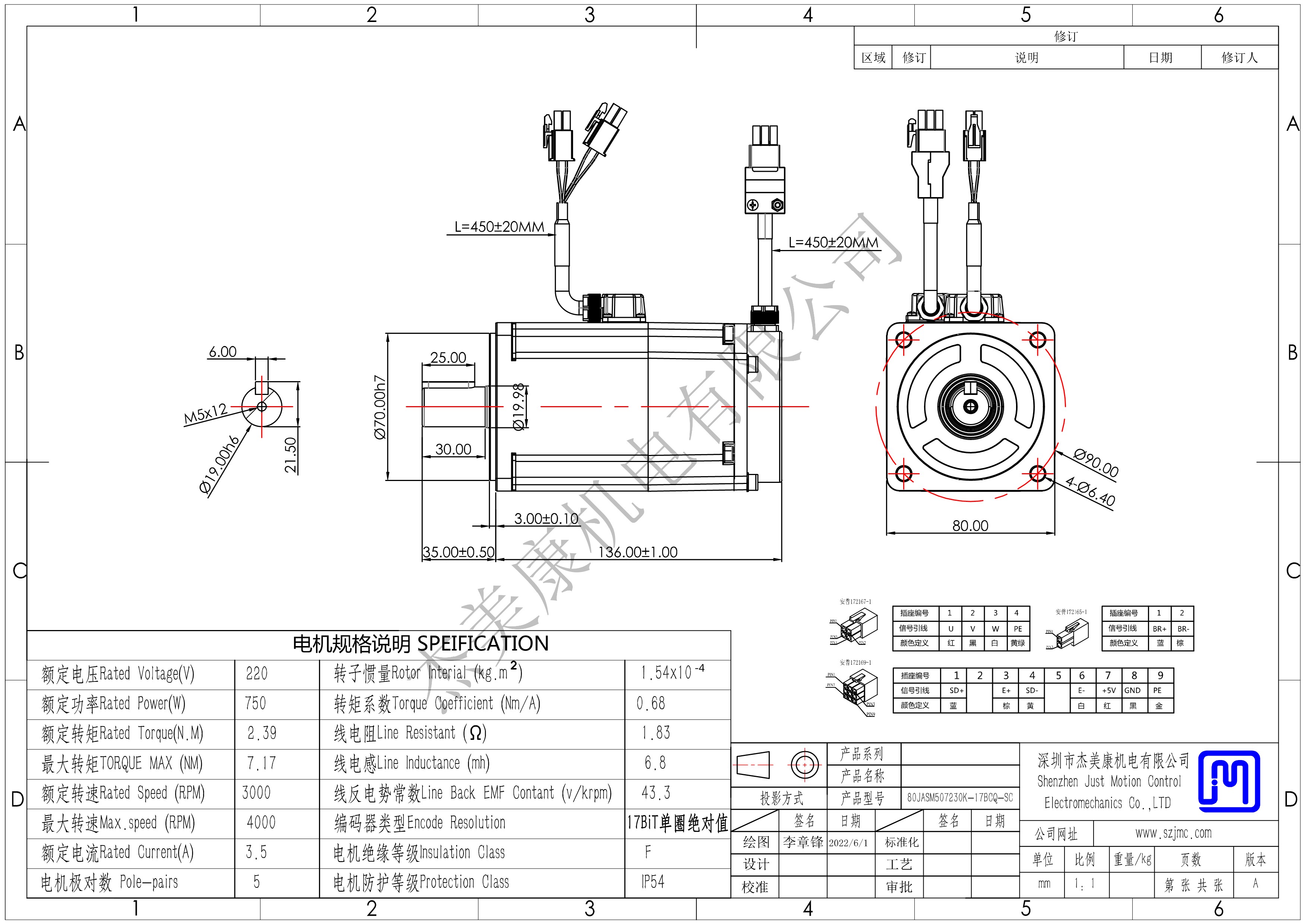

Drawing

2D 3D

Datasheet

Debug
Software

Certificate

80JASM507230K-17BC-SC
