model：57SE1865-440-TR9.525*xxxx-150-01
name：Screw Motor
◼ Rated voltage: 3.0VDC
◼ Rated current: 4.0A
◼ Frame size: 57mm
◼ Screw diameter 9.525mm, optional pitch
◼ Screw length can be customized


online purchase →

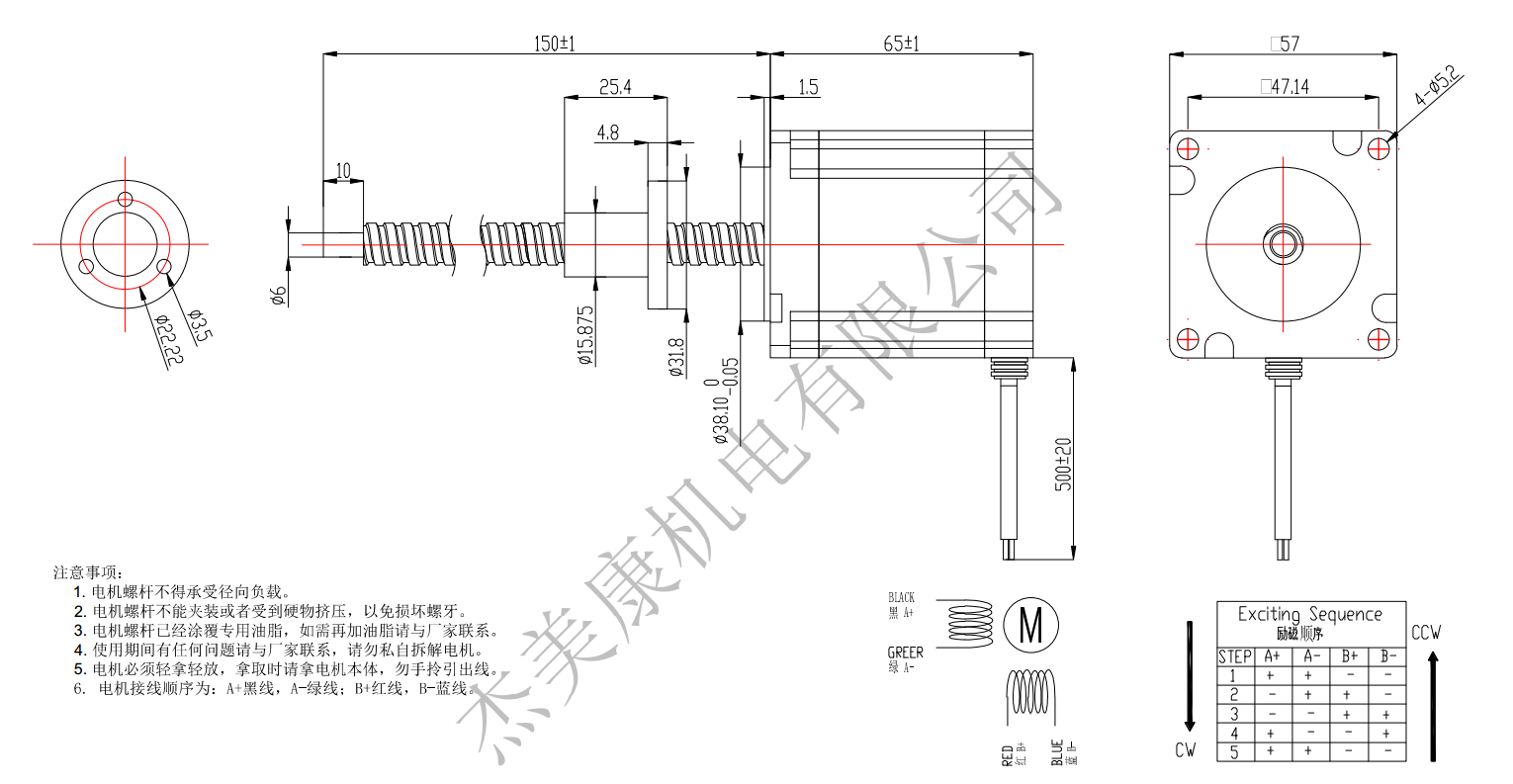

SpecificationDimension Supporting facilities correlation download
AttributesUnitValue
Base sizemm57
Phase2
Microstep1.8°
Length of motormm65
Diameter of Screwmm9.525
Length of Screwmm150
Thread leadmm

0.635

1.27

1.5875

2.116

2.54

3.175

4.232

5.08

9.525

10.16

25.4

Full Stepmm

0.003175

0.00635

0.0079375

0.010508

0.0127

0.015875

0.02116

0.0254

0.047625

0.0508

0.127

VoltageV3
CurrentA4
RisstanceΩ0.76
InductanceMh2.0
Rotor Inertiag.cm²400
Holding TorqueN.m1.5
Lead out line4
Working Temperature-20℃~+50℃
Temperature RiseK80
Insolution ClassB
CertifiedRoHS
2 Phase Stepper Driver 2DM556 view more
Screw Motor 57SE1855-430-TR9.525*xxxx-150-01 view more
Screw Motor 57SE1876-440-TR9.525*xxxx-150-01 view more
