model：86SN1876-460-TR15..875*xxxx-300-01

name：Screw Lead Motor

◼ Rated voltage: 2.75VDC
◼ Rated current: 6.0A
◼ Frame size: 86mm
◼ The diameter of the screw rod is 15.875mm, and the pitch is optional
◼ Screw length can be customized

online purchase →

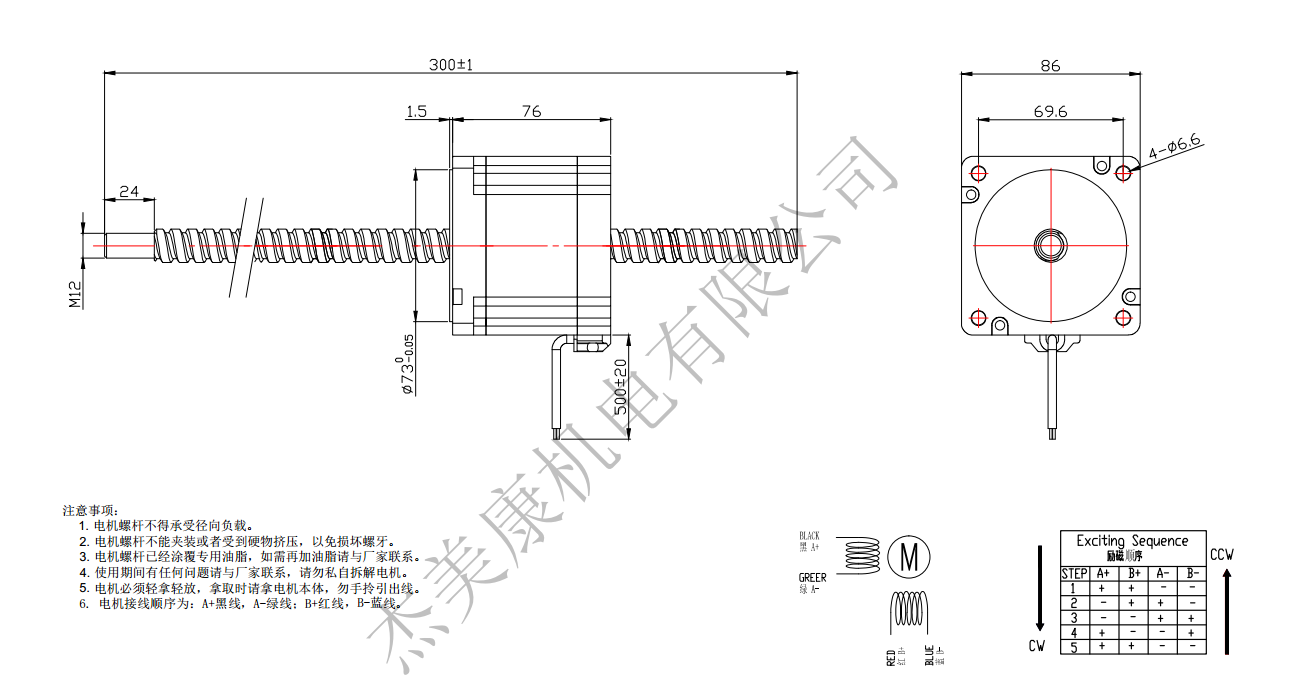

Specification Dimension Supporting facilities correlation download

Attribute	Unit	Value
Base	mm	86
Phase		2
Micro Step		1.8°
Length of Motor	mm	76
Diameter	mm	15.875
Length	mm	300
Thread lead	mm	2.54 3.175 5.08 6.35 12.7 25.4
Full Step	mm	0.0127 0.015875 0.0254 0.03175 0.0635 0.127
Voltage	V	2.75
Current	A	6.0
Risstance	Ω	0.5
Inductance	Mh	4.5
Rotor Inertia	g.cm²	1300
Torque	N.m	4.5
Lead out line		4
Working Temp		-20℃~+50℃
Temp Rise	K	80
Insulation		B
Certificate		RoHS
