model：20J1828-405-5-1510-01 Hollow shaft

name：Hollow shaft stepper motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

online purchase →

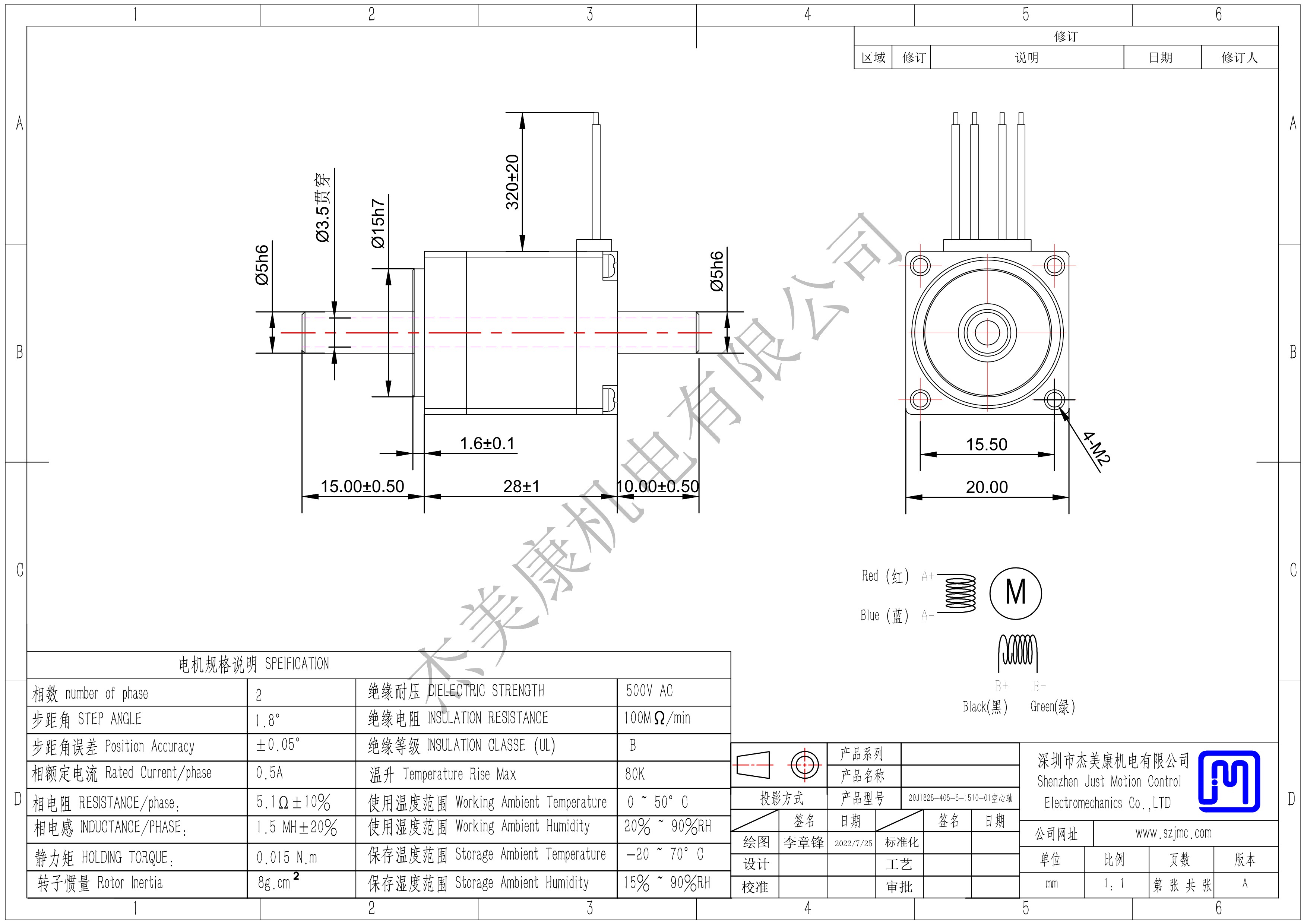

Specification Dimension Supporting facilities correlation download

Attributes	Unit	Value
Base size	mm	20
Phase		2
Microstep		1.8°
Length of motor	mm	28
Length of shaft	mm	20
Diameter of shaft	mm	5
Type of shaft		Hollow
Current	A	0.5
Risstance	Ω	5.1
Inductance	Mh	1.5
Rotor inertia	g.cm²	8.0
Holding torque	N.m	0.015
Lead out line		4
Working temperature		-20℃~+50℃
temperature rise	K	80
Insulation class		B
Certified		RoHS
