Product model：28J1851-410-8-1510-01 Hollow shaft

Product name：Hollow shaft stepper motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

Online purchase →

Specification Dimension Accessory products Related products Download materials

Attributes	Unit	Value
Base size	mm	28
Phase		2
Microstep		1.8°
Length of motor	mm	51
Length of shaft	mm	Front shaft 15 Rear shaft10
Diameter of shaft	mm	8
Type of shaft		Hollow
Current	A	1.0
Rissitance	Ω	6.5
Inductance	Mh	7.0
Rotor inertia	g.cm²	18
Holding torque	N.m	0.1
Lead out polars		4
Working temperature		-20℃~+50℃
Temperature rise	K	80
Insulation class		B
Certified		RoHS

2 Phase Stepper Driver 2DM415 View details

Hollow shaft stepper motor 28J1832-410-8-1510-01 View details

Hollow shaft stepper motor 28J1840-410-8-1510-01 Hollow shaft View details

Hollow shaft stepper motor 28J1845-410-8-1510-01 Hollow shaft View details

Model

Catalog

Manual

Connect Protocol

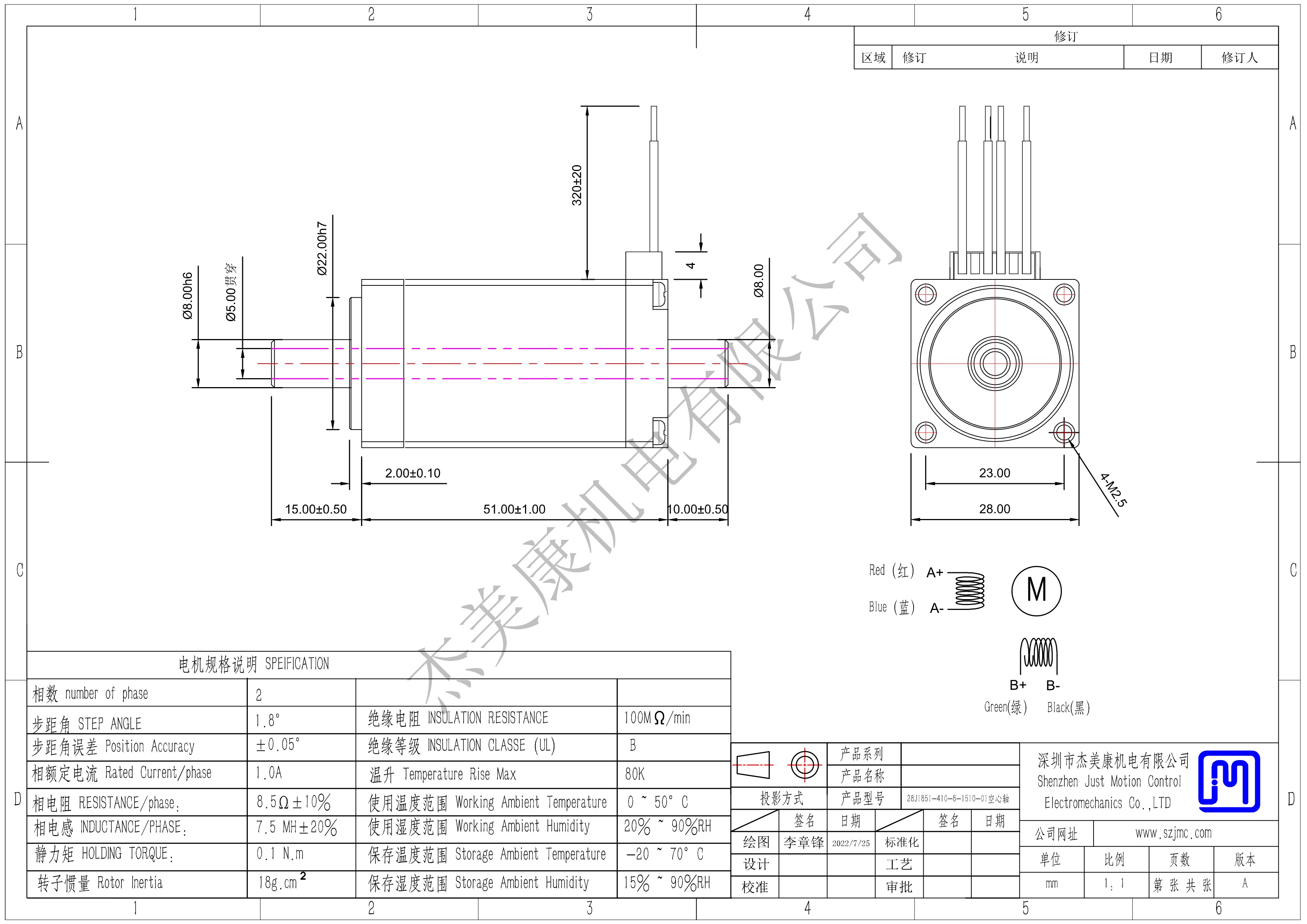

Drawing
