Product model：42J1840-415-10-2415-01Hollow shaft

Product name：Hollow shaft step motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

Online purchase →

Specification Dimension Accessory products Related products Download materials

Attributes	Unit	Value
Base size	mm	42
Phase		2
Microstep		1.8°
Length of motor	mm	40
Length of shaft	mm	Front axls24Rear axls15
Diameter of shaft	mm	10
Type of shaft		Hollow shaft
Current	A	1.5
Risstance	Ω	2.3
Inductance	Mh	4.3
Rotor inertia	g.cm²	57
Holding torque	N.m	0.4
Lead out line		4
Working temperature		-20℃~+50℃
Temperature rise	K	80
Insolution class		B
Certified		RoHS

2 Phase Stepper Driver 2DM420 View details

Hollow shaft step motor 42J1848-425-10-2415-01空心轴 View details

Model

Catalog

Manual

Connect Protocol

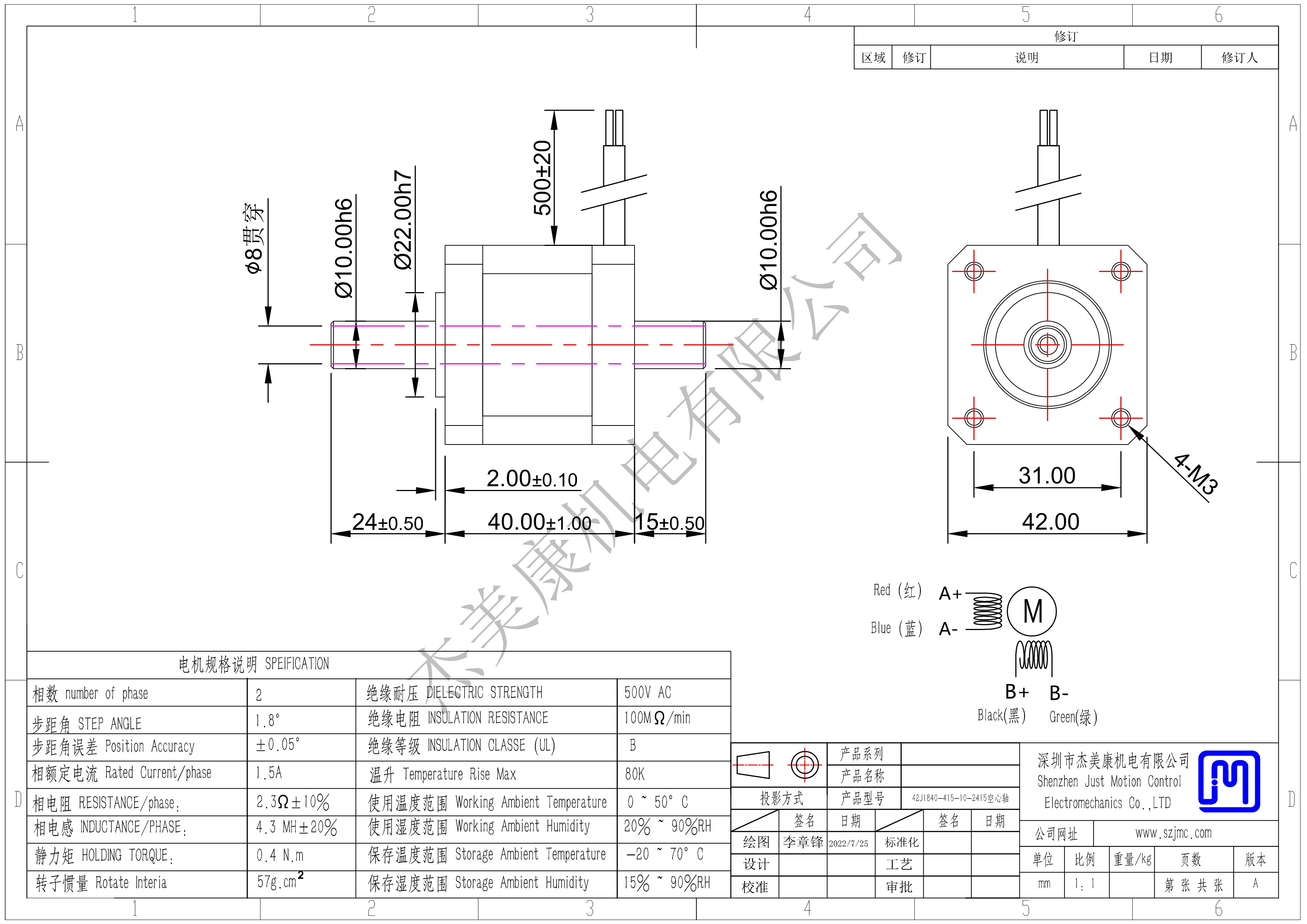

Drawing
