Product model：35J1834-410-10-2415-01Hollow shaft

Product name：Hollow shaft stepper motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

Online purchase →

Specification Dimension Accessory products Related products Download materials

Attributes	Unit	Value
Base size	mm	35
Phase		2
Microstep		1.8°
Length of motor	mm	34
Length of shaft	mm	Front axls24Rear axls15
Diameter of shaft	mm	10
Type of shaft		Hollow shaft
Current	A	1.0
Risstance	Ω	2.7
Inductance	Mh	4.3
Rotor inertia	g.cm²	14
Holding torque	N.m	0.11
Lead out line		4
Working temperature		-20℃~+50℃
Temperature rise	K	80
Insulation class		B
Certified		RoHS

2 Phase Stepper Driver 2DM415 View details

Hollow shaft step motor 35J1840-412-10-2415-01 Hollow shaft View details

Model

Catalog

Manual

Connect Protocol

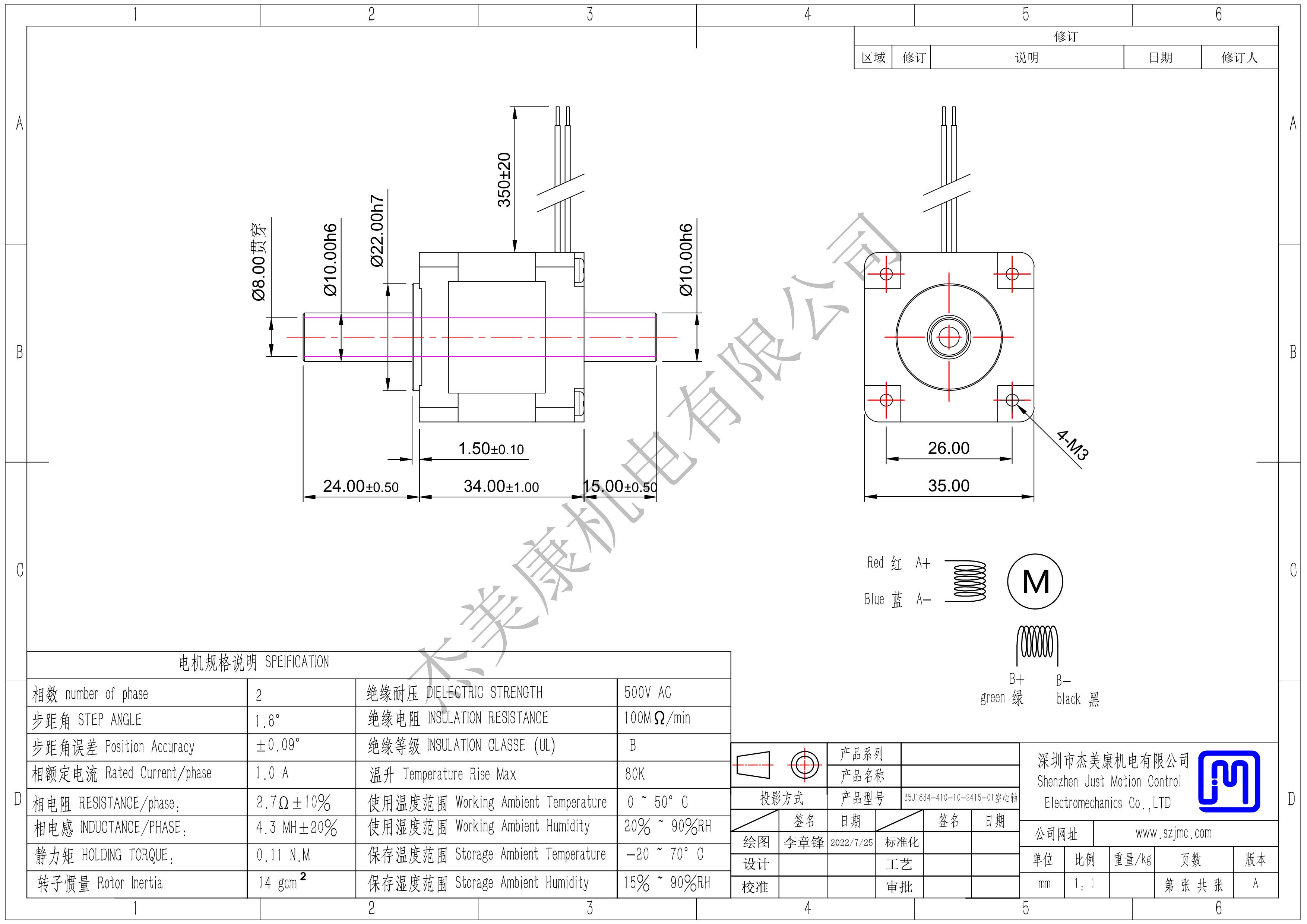

Drawing
