model：35J1840-412-10-2415-01 Hollow shaft

name：Hollow shaft step motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

online purchase →

Specification Dimension Supporting facilities correlation download

Atttributes	Unit	Value
Base size	mm	35
Phase		2
Microstep		1.8°
Length of motor	mm	40
Length of shaft	mm	Front axls24Rear axls15
Diameter of shaft	mm	10
Type of shaft		Holllow shaft
Current	A	1.2
Risstance	Ω	2.9
Inductance	Mh	4.0
Rotor inertia	g.cm²	22
Holding torque	N.m	0.22
Lead out line		4
Working temperature		-20℃~+50℃
Temperature rise	K	80
Insulation class		B
Certified		RoHS

2 Phase Stepper Driver 2DM415 view more

Hollow shaft stepper motor 35J1834-410-10-2415-01Hollow shaft view more

Model

Brochure

manual

Communication manual

CEattestation

CE RoHS

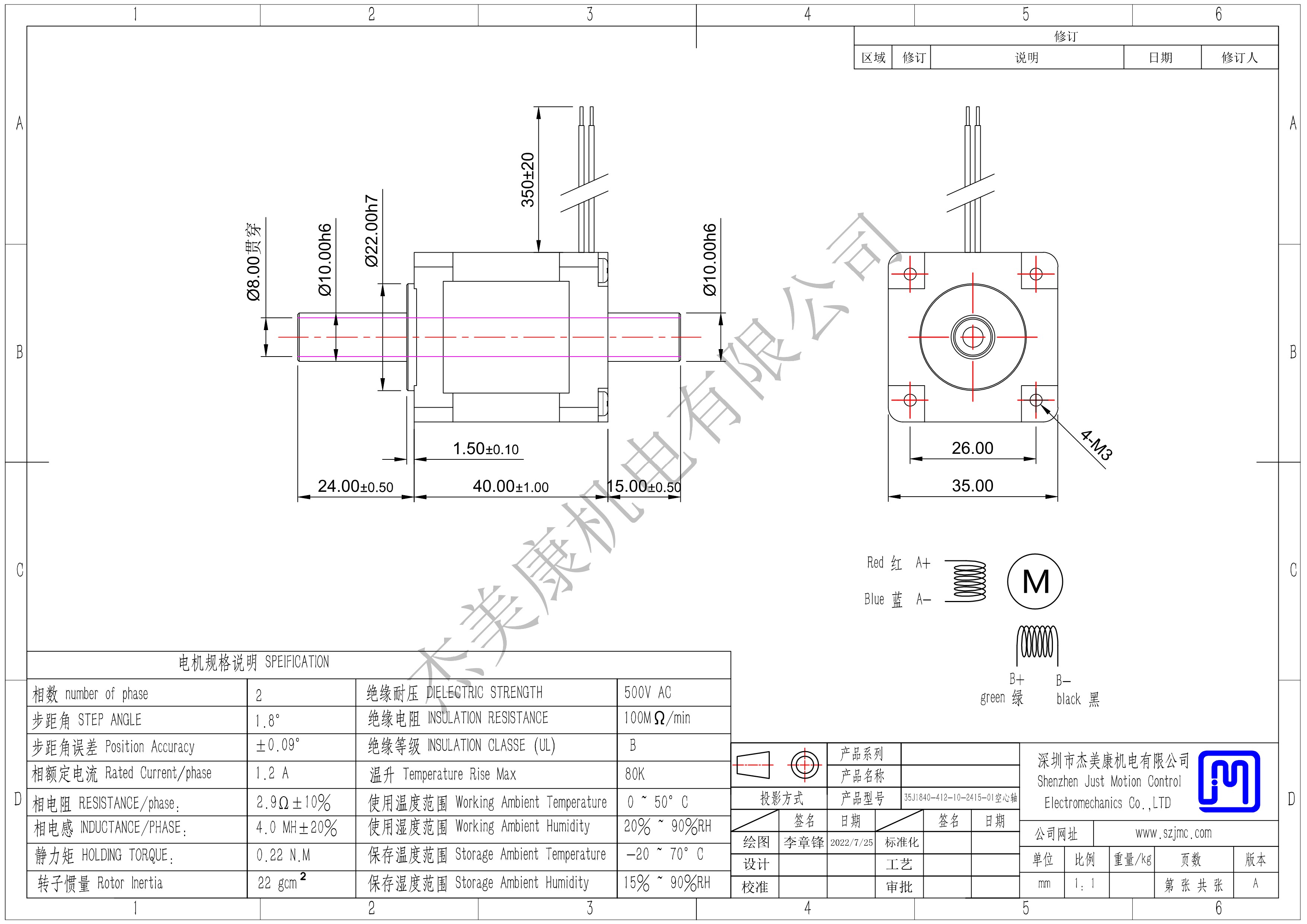

2D drawing
