Product model：57J1854-430-15-21100-01 Hollow shaft

Product name：Hollow shaft step motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

Online purchase →

Specification Dimension Accessory products Related products Download materials

Attributes	Unit	Value
Base size	mm	57
Phase		2
Microstep		1.8°
Length of motor	mm	54
Length of shaft	mm	前轴21后轴10
Diameter of shaft	mm	15
Type of shaft		空心轴
Current	A	3.0
Risstance	Ω	0.5
Inductance	Mh	1.5
Rotor inertia	g.cm²	260
Holding torque	N.m	1.0
Number of lead out		4
Work temperature		-20℃~+50℃
Temperature rise	K	80
Insulation class		B
certified		RoHS

2 Phase Stepper Driver 2DM556 View details

Hollow shaft step motor 57J1876-440-15-2110-01Hollow shaft View details

Model

Catalog

Manual

Connect Protocol

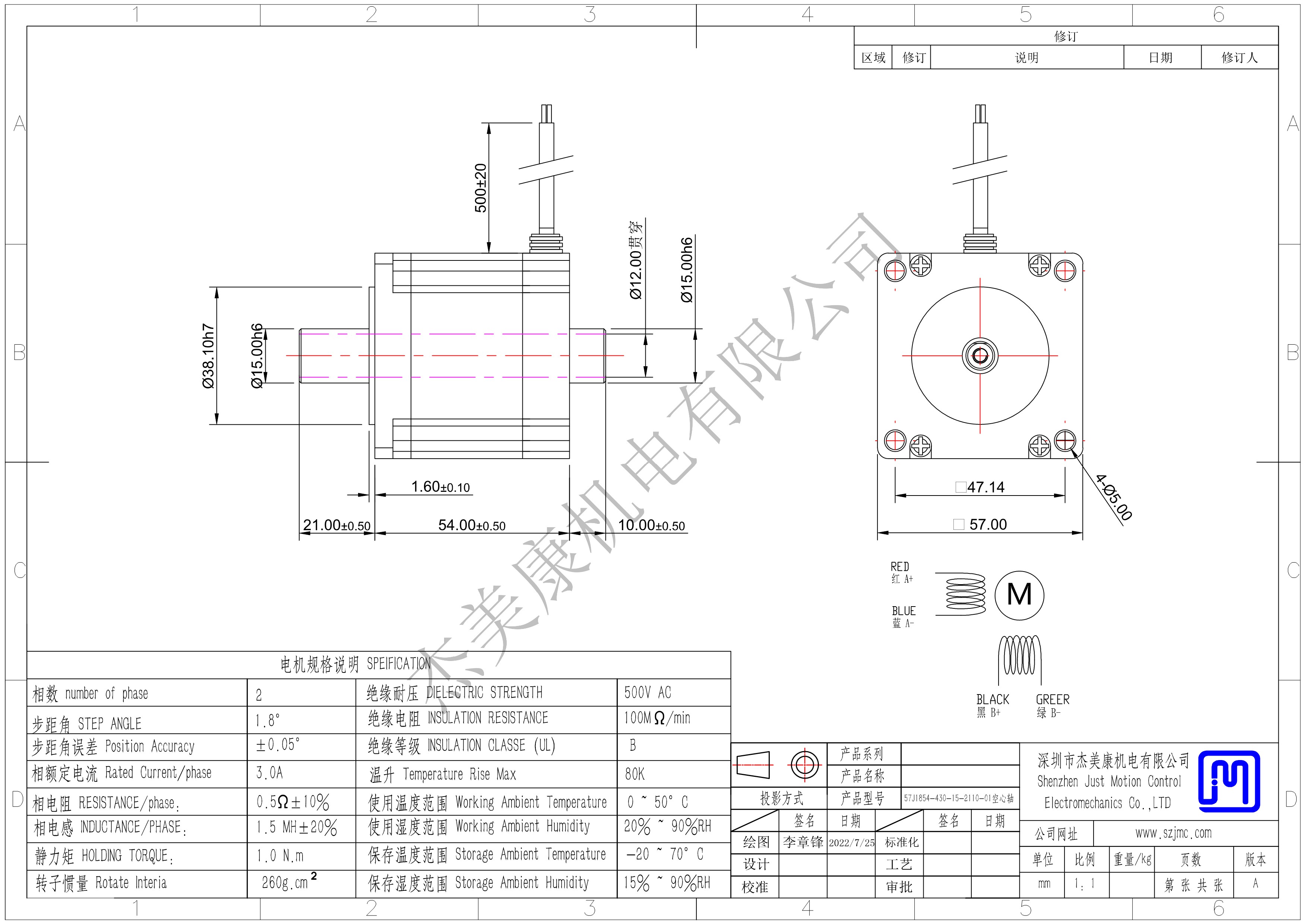

Drawing
