Product model：57J1876-440-15-2110-01Hollow shaft

Product name：Hollow shaft step motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

Online purchase →

Specification Dimension Accessory products Related products Download materials

Atributes	Unit	Value
Base size	mm	57
Phase		2
Microstep		1.8°
Length of motor	mm	76
Length of shaft	mm	front axle21rear axle10
Diameter of shaft	mm	15
Type of shaft		Hollow shaft
Current	A	4.0
Risstance	Ω	0.9
Induction	Mh	4.5
Rotor inertia	g.cm²	480
Holding torque	N.m	1.8
Lead-out wire		4
Working temperature		-20℃~+50℃
temperature rise	K	80
Insulation class		B
Certified		RoHS

2 Phase Stepper Driver 2DM556 View details

Hollow shaft step motor 57J1854-430-15-21100-01 Hollow shaft View details

Model

Catalog

Manual

Connect Protocol

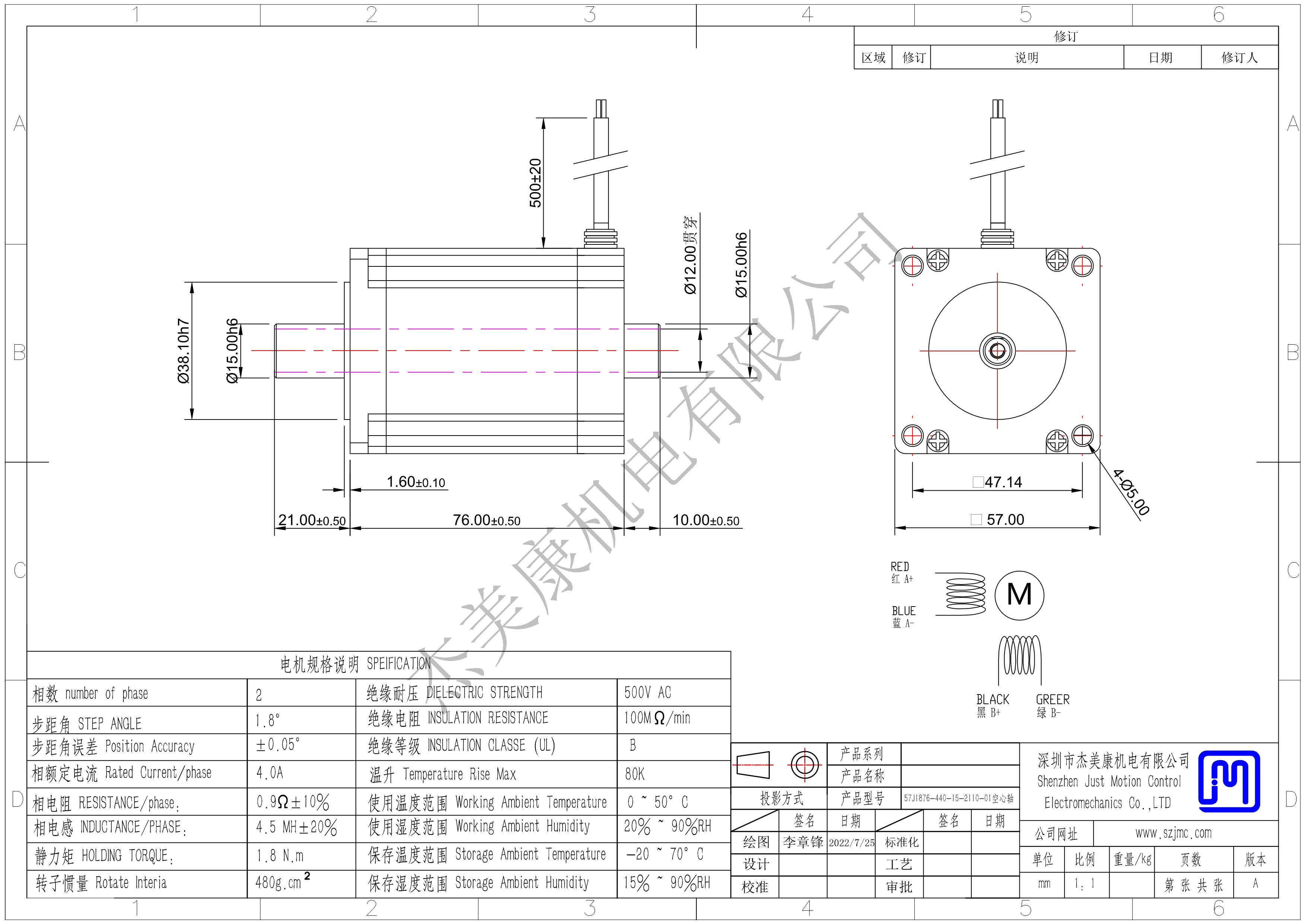

Drawing
