Product model：86J1865-450-20-2010-01 Hollow shaft

Product name：Hollow Shaft Stepper

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

Online purchase →

Specification Dimension Accessory products Related products Download materials

Arributes	unit	Value
Base size	mm	86
Phase		2
Microstep		1.8°
Length of motor	mm	65
Length of shaft	mm	Front axle20 Rear axle10
Diameter of shaft	mm	20
Type of shaft		Hollow shaft
Current	A	5.0
Risstance	Ω	0.44
Inductance	Mh	4.5
Rotor inertia	g.cm²	950
Holding torque	N.m	3.5
Lead out		4
Working temperature		-20℃~+50℃
Temperature rise	K	80
Insulation class		B
Certified		RoHS

2 Phase Stepper Driver 2DM860 View details

Hollow shaft step motor 86J1880-460-20-2010-01 Hollow shaft View details

Model

Catalog

Manual

Connect Protocol

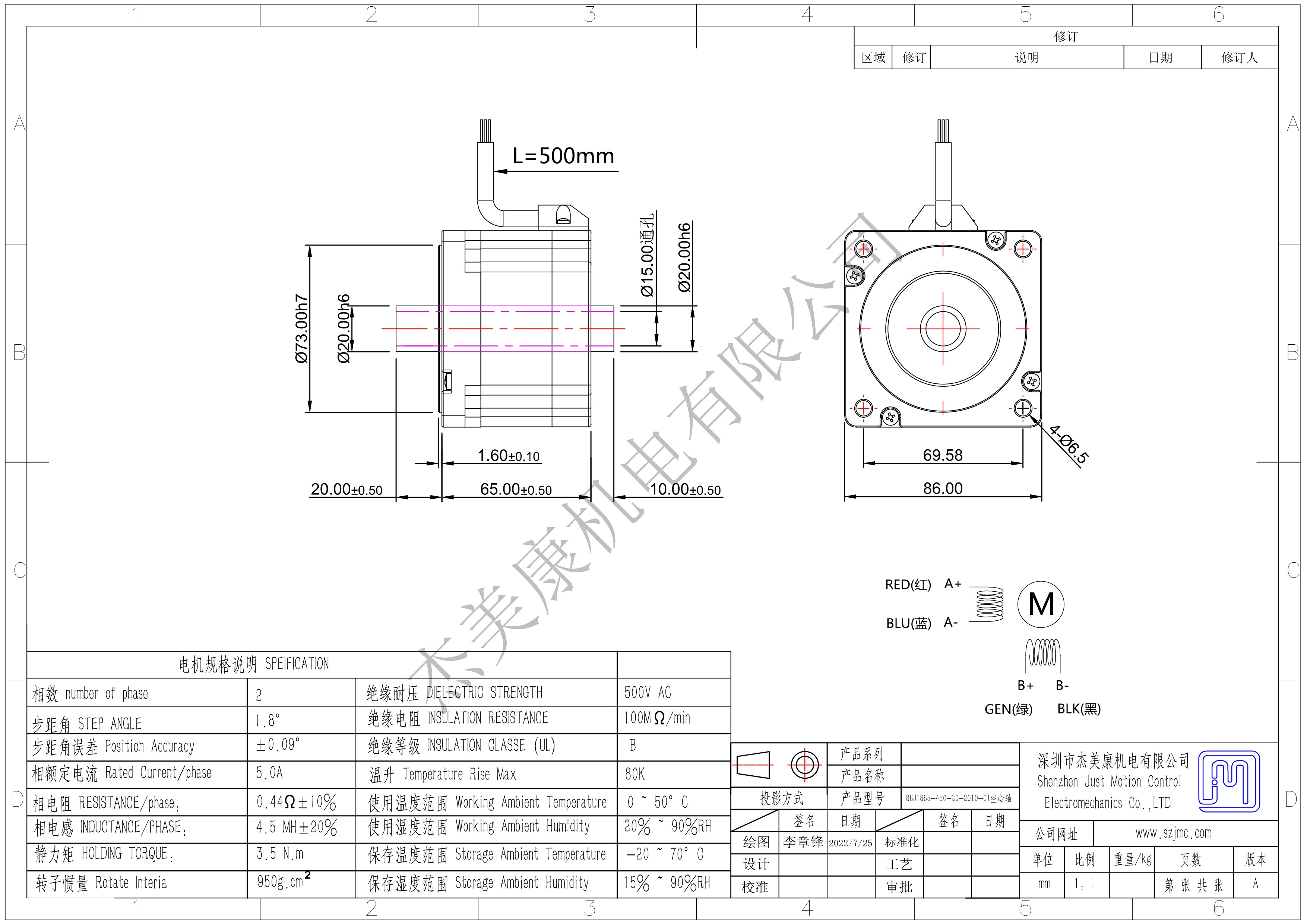

Drawing
