Product model：86J1880-460-20-2010-01 Hollow shaft

Product name：Hollow shaft step motor

◼ Hollow shaft diameter can be customized
◼ Open-loop control, accurate positioning
◼ Excellent speed and torque
◼ Low noise, high precision, stable operation
◼ Precise positioning, rotor, small air gap, high reliability

Online purchase →

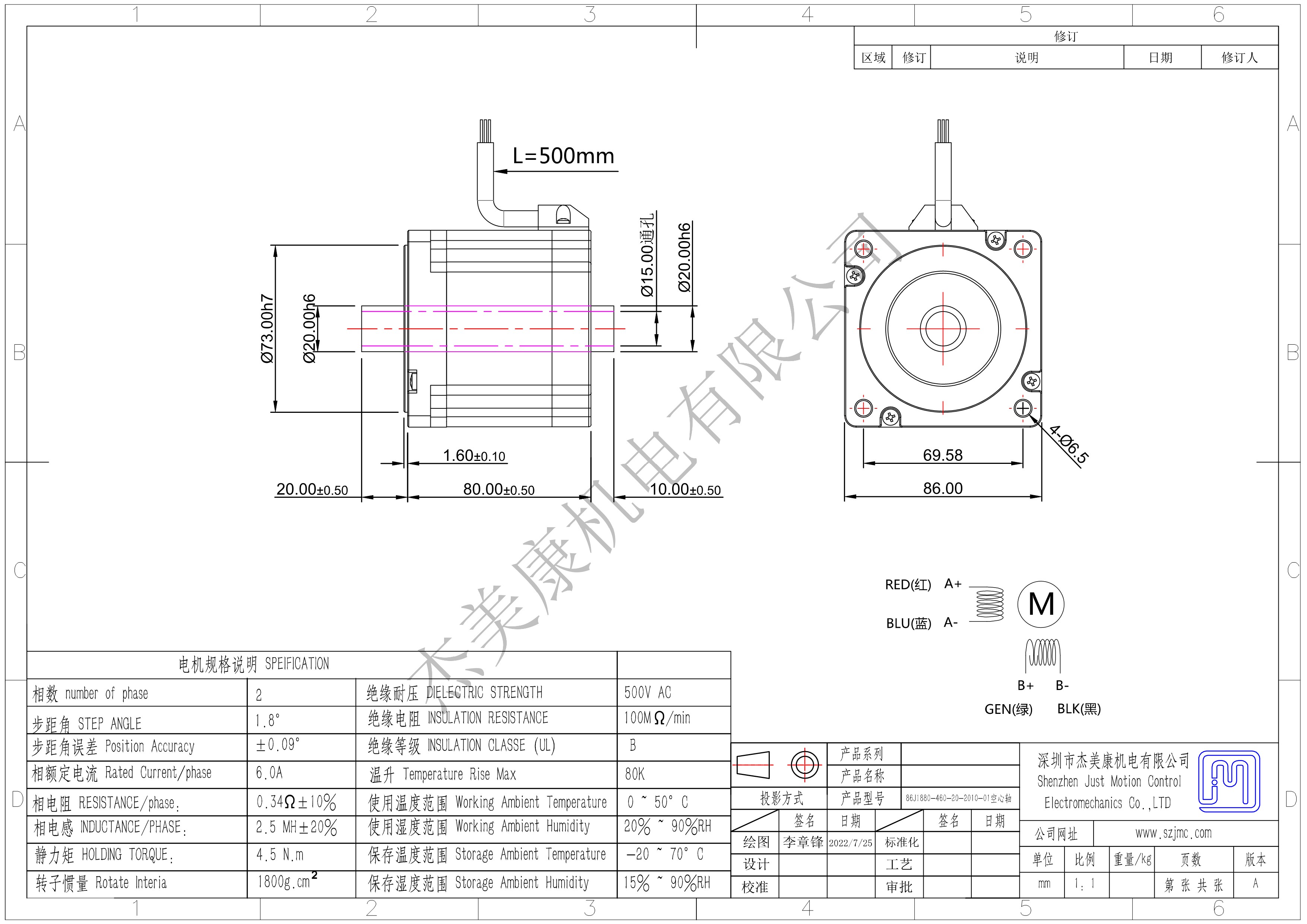

Specification Dimension Accessory products Related products Download materials

Attributes	Unit	Value
Base size	mm	86
Phase		2
Microstep		1.8°
Length of motor	mm	80
Length of shaft	mm	Front axls20 Rear axls10
Diameter of shaft	mm	20
Typeof shaft		Hollow shaft
Current	A	6.0
Risstance	Ω	0.34
Inductance	Mh	2.5
Rotor inertia	g.cm²	1800
Holding torque	N.m	4.5
Lead out polars		4
Working temperature		-20℃~+50℃
Temperature rise	K	80
Insolation class		B
Certified		RoHS

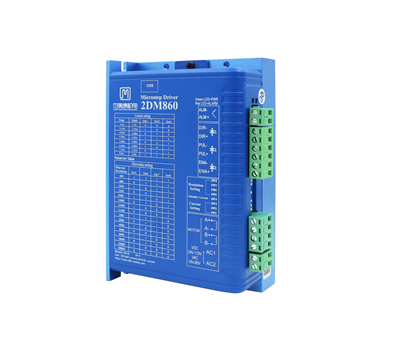

2 Phase Stepper Driver 2DM860 View details

Hollow Shaft Stepper 86J1865-450-20-2010-01 Hollow shaft View details
